STARTECH .com AV extender AV transmitter & receiver Black (ST12MHDLNHK)
- Regular price
- 708.95$
- Sale price
- 708.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com ST12MHDLNHK AV extender AV transmitter & receiver Black
Brand:StarTech.com
Product name:HDMI Over IP Extender Kit with Advanced Compression - TAA
Product code:ST12MHDLNHK
EAN/UPC:
0065030878760
0065030878760, 065030878760
- Efficiently distribute video throughout your site using your local area network
- Easily create your ideal digital signage with a versatile and scalable video distribution system
- Deliver brilliant HD quality video with 1080p support
- Newer Version Available: ST12MHDLAN2K features longer range (100m/330ft) and video wall support
Description
Transmitter & Receiver | 1920 x 1080 (1080p) | Mountable | Multicast & Unicast
Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.
Ideal for Universities, Offices, and Restaurants
Reliably Extend Compressed HDMI Video with Bandwidth Efficiency
This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.
With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.
Flexible & Scalable Deployment Options
The HDMI over LAN extender offers many configurations to accommodate your set up.
This HDMI video extender provides four ways to control your video network configurations.
Rotary DIP switches located on the Tx and Rx
• Your computer connected to the transmitter or receiver via a serial cable
• Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
• Infrared (IR) remote control using the included receiver
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.
Ideal for Universities, Offices, and Restaurants
Reliably Extend Compressed HDMI Video with Bandwidth Efficiency
This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.
With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.
Flexible & Scalable Deployment Options
The HDMI over LAN extender offers many configurations to accommodate your set up.
This HDMI video extender provides four ways to control your video network configurations.
Rotary DIP switches located on the Tx and Rx
• Your computer connected to the transmitter or receiver via a serial cable
• Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
• Infrared (IR) remote control using the included receiver
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
Specs
Features
Type
Characteristics of the device.
AV transmitter & receiver
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 100 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
15 m
Maximum refresh rate
60 Hz
Audio output channels
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
2.0 channels
LED indicators
Status
Supported video modes
The video modes that can be displayed by the device.
1080p
Material
The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Daisy chain
Rubber feet
Product color
The colour e.g. red, blue, green, black, white.
Black
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Packaging data
Package width
The distance from one side of the packaging to the other.
180 mm
Package depth
The distance from the front to the back of the packaging.
308 mm
Package height
The distance from the top to the bottom of the packaging.
72 mm
Technical details
Sustainability compliance
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case width
324 mm
Master (outer) case length
406 mm
Master (outer) case height
262 mm
Quantity per master (outer) case
6 pc(s)
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
Port (socket) for HDMI input.
1
Number of HDMI outputs
Port (socket) for HDMI output.
1
USB ports quantity
2
USB connector type
The type of USB connector/port that this product has.
Mini-USB B
Audio input
The type of audio input that the device requires, and the connection needed.
3.5 mm
Audio output
The type of audio output that the device produces, and the connector(s).
3.5 mm
Remote (IR) input
1
Remote (IR) output
1
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Operating voltage
Defines the range of operating voltages available
5 V
Input current
0.3 A
Output current
1 A
Weight & dimensions
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
3,2 kg

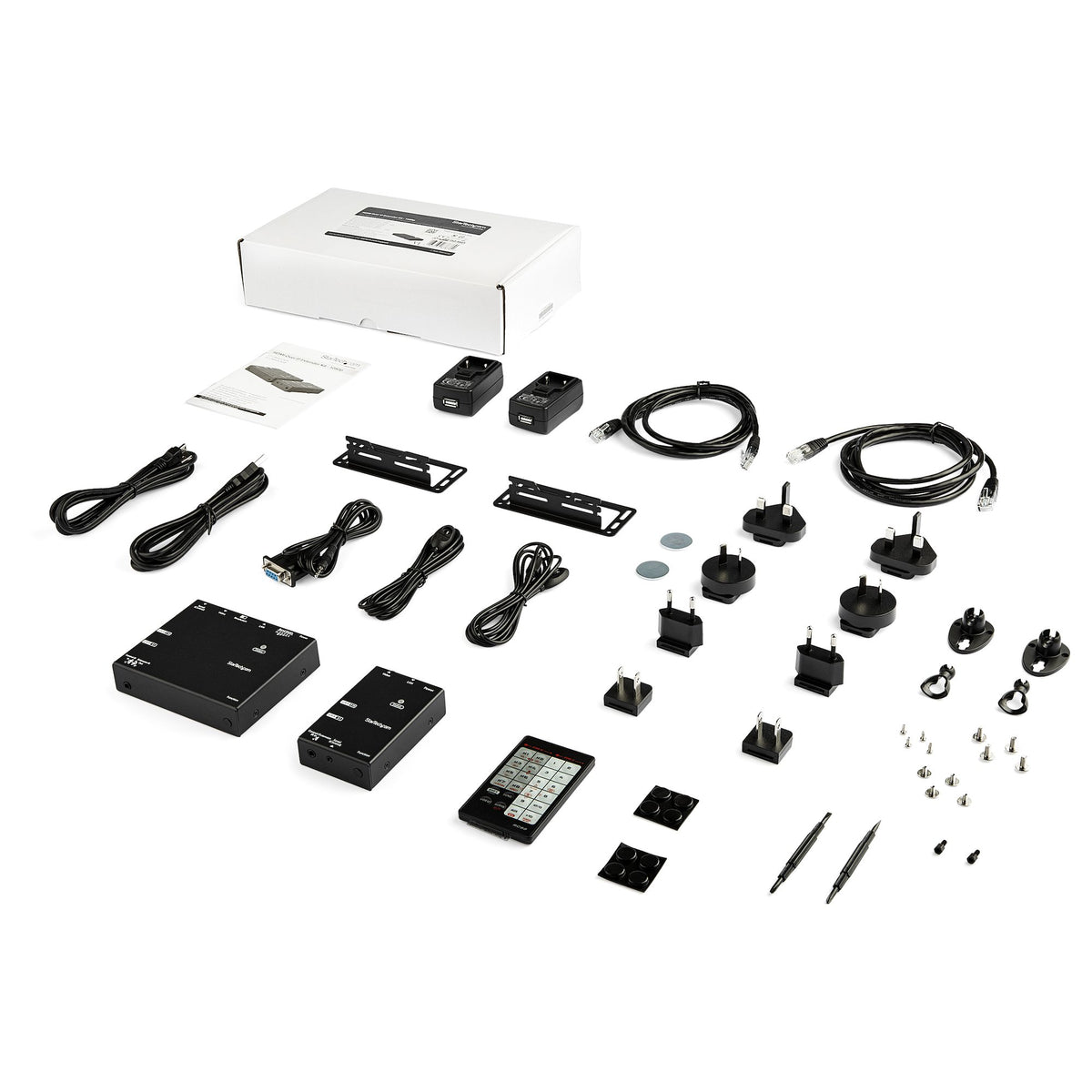

Packaging content
AC adapter included
Cables included
LAN (RJ-45), Serial, USB
Included power plug types
ANZ, EU, NA, UK
Manual
IR blaster included
IR receiver included
Handheld remote control
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Mounting brackets included
