STARTECH .com AV extender AV transmitter & receiver Black (ST121HDBTPW)
- Regular price
- 604.95$
- Sale price
- 604.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com ST121HDBTPW AV extender AV transmitter & receiver Black
Brand:StarTech.com
Product name:HDMI over CAT5e HDBaseT Extender - 4K - TAA
Product code:ST121HDBTPW
EAN/UPC:
0065030854177
0065030854177, 065030854177, 0690025794925, 690025794925
- Extend video where power outlets are limited with HDBaseT offering power over cable that powers both the transmitter and receiver using a single power source at either side of the connection
- Maintains astonishing picture quality up to 115 ft. (35 m) away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling
- Also supports HD video resolutions such as 1920x1200 or 1080p at distances up to 330 ft. (100m)
- Extend HDMI, and Power over Cable all through one Cat5e or CAT6 cable with HDBaseT
- Hassle-free, professional installation with included mounting brackets, and full video extension existing infrastructure

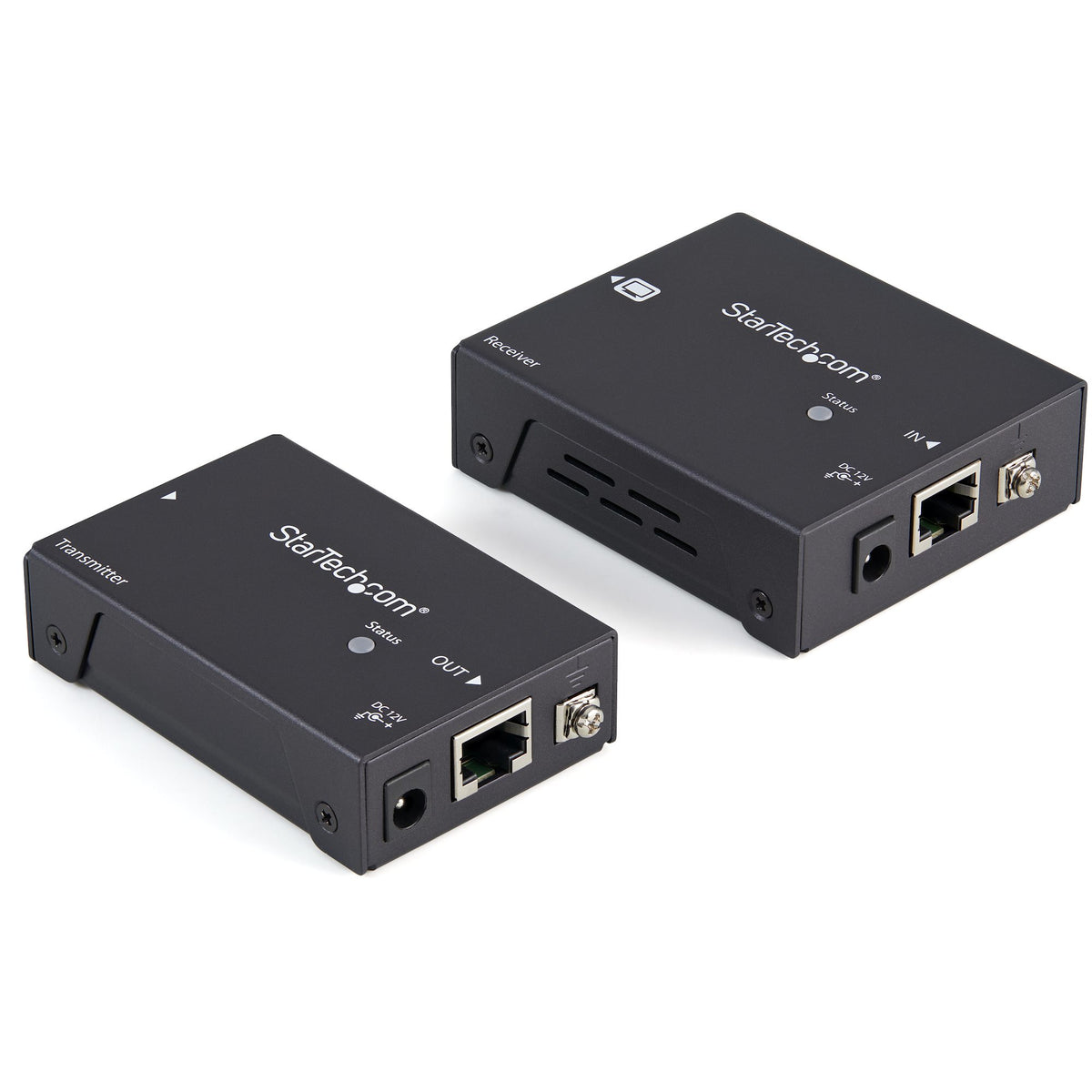

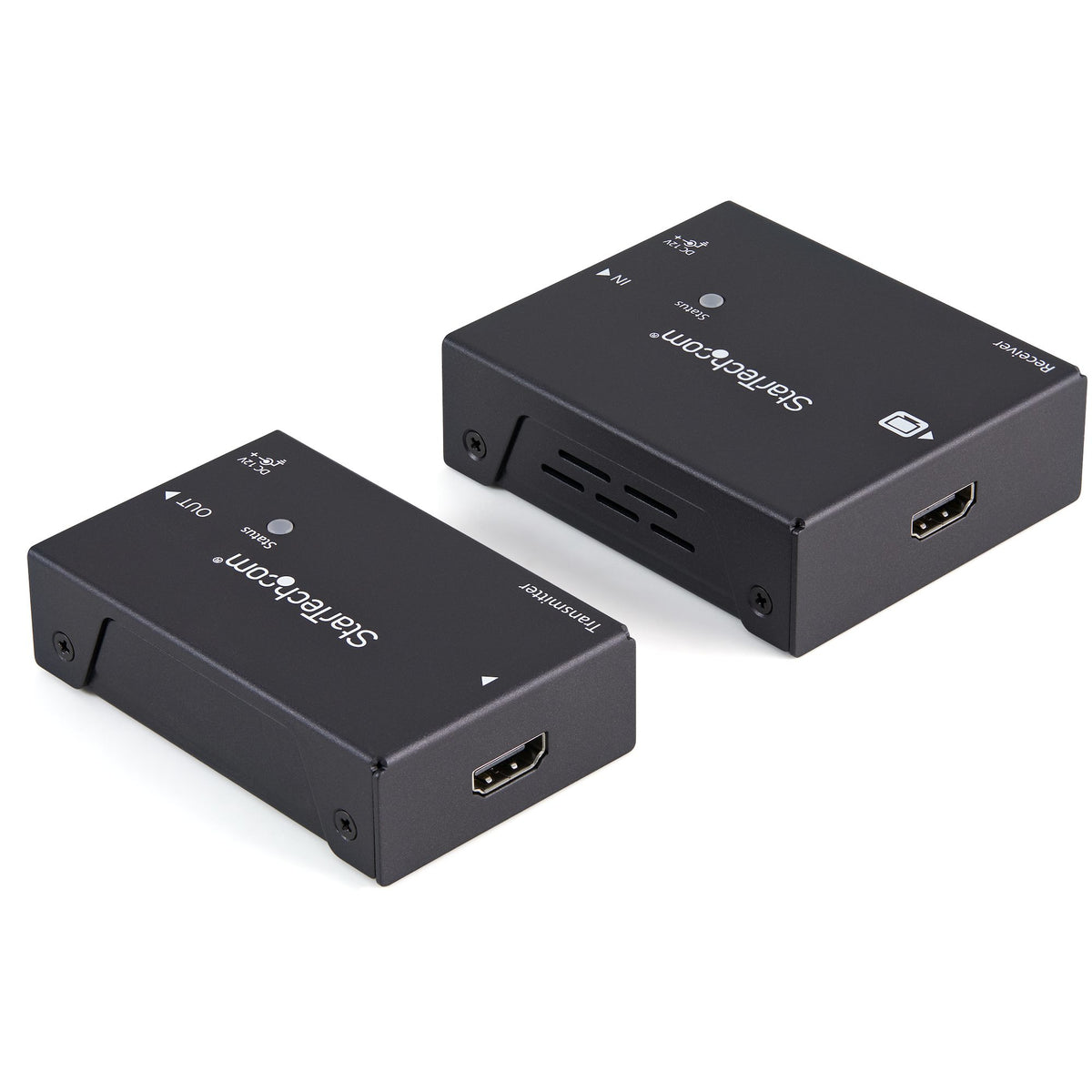

- HDMI transmitter and receiver included
- No software or drivers required
- Dolby® TrueHD, DTS-HD MA Audio
- 100m (330ft) maximum Cat5 cable distance
Description

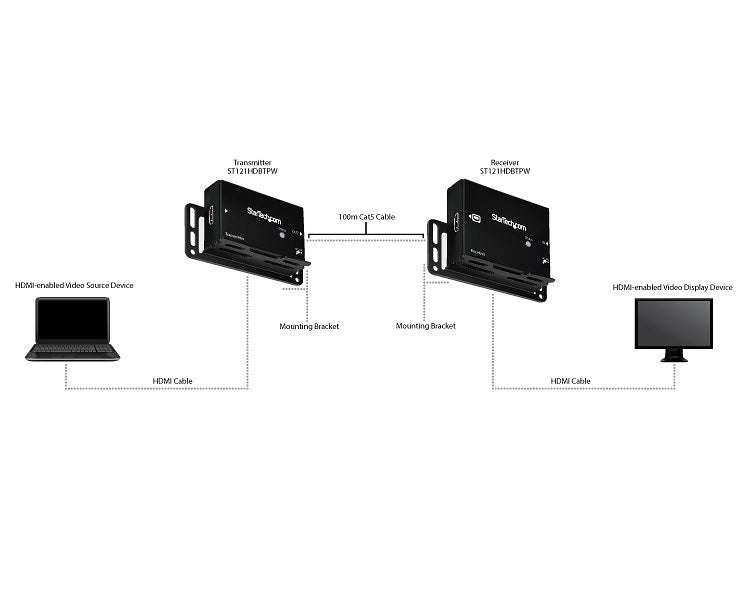

Extend HDMI up to 330ft (100m) over CAT5e/CAT6 cable with Power over Cable to Receiver
This HDBaseT extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.
What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
Extend More than Video with HDBaseT
For greater versatility than a traditional HDMI extender or HDMI cabling alone, this HDBaseT extender offers HDMI + Power Over Cable in a single kit. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending to areas where power outlets may be limited.
Astonishing 4K picture quality from an impressive distance
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet. With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 330 feet away, you can comfortably use this extender to make any video source look great.
Hassle-free, Professional Installation with a Single Cable
This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.
The ST121HDBTPW is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
This HDBaseT extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.
What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
Extend More than Video with HDBaseT
For greater versatility than a traditional HDMI extender or HDMI cabling alone, this HDBaseT extender offers HDMI + Power Over Cable in a single kit. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending to areas where power outlets may be limited.
Astonishing 4K picture quality from an impressive distance
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet. With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 330 feet away, you can comfortably use this extender to make any video source look great.
Hassle-free, Professional Installation with a Single Cable
This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.
The ST121HDBTPW is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
Specs
Features
Type
Characteristics of the device.
AV transmitter & receiver
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
100 m
Maximum refresh rate
60 Hz
Audio system
System used to play music or speech.
Multichannel
Audio output channels
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 channels
LED indicators
Status
Supported video modes
The video modes that can be displayed by the device.
720p, 1080p, 2160p
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Material
The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
Daisy chain
Rubber feet
Product color
The colour e.g. red, blue, green, black, white.
Black
HDBaseT certified
Certification
CE, FCC, TAA
Packaging data
Package width
The distance from one side of the packaging to the other.
295 mm
Package depth
The distance from the front to the back of the packaging.
196 mm
Package height
The distance from the top to the bottom of the packaging.
74 mm
Package weight
Weight of the packaged product in gram.
1,2 kg
Technical details
Audio support
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Logistics data
Master (outer) case width
418 mm
Master (outer) case length
452 mm
Master (outer) case height
337 mm
Quantity per master (outer) case
12 pc(s)

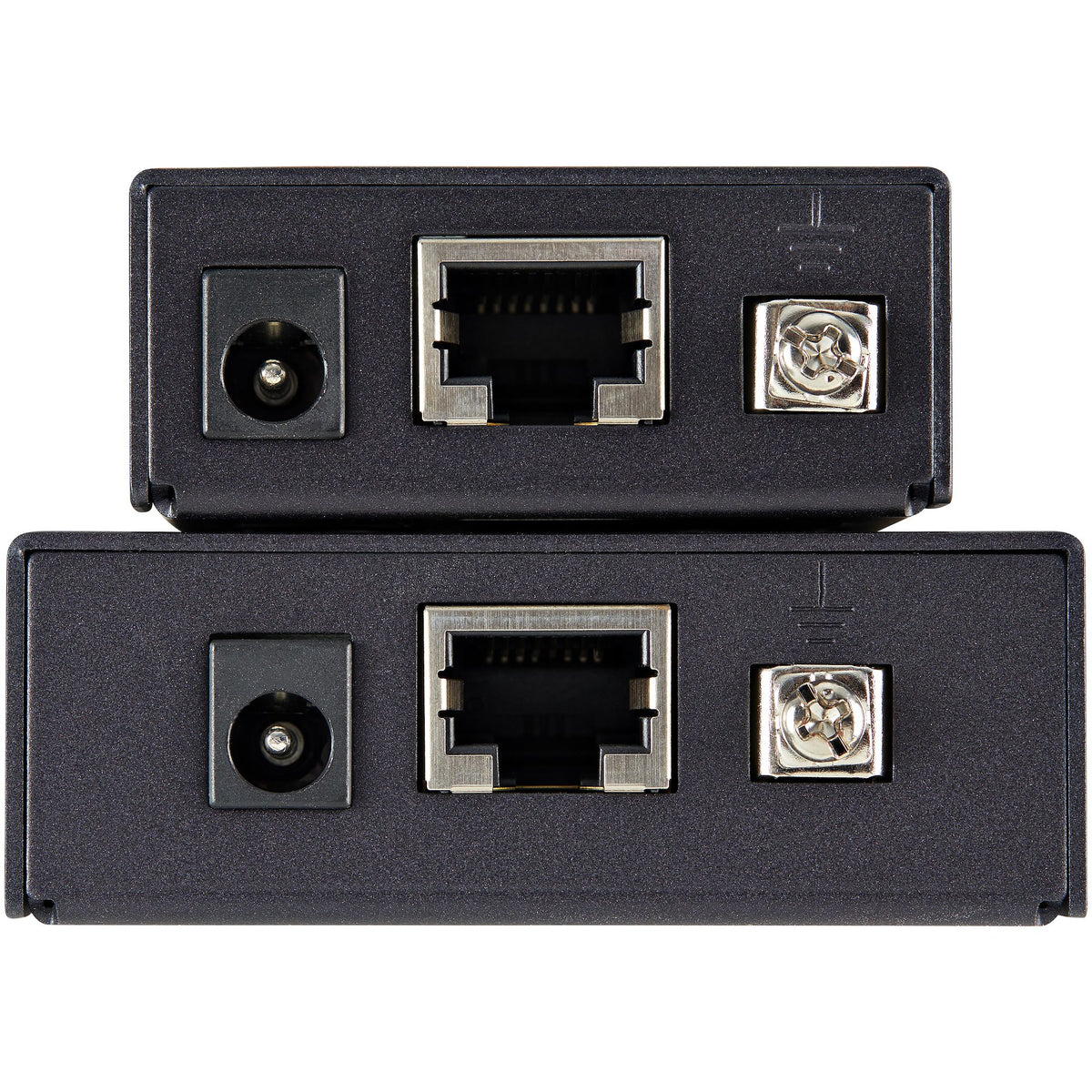

Ports & interfaces
RJ-45 input ports
1
RJ-45 output ports
1

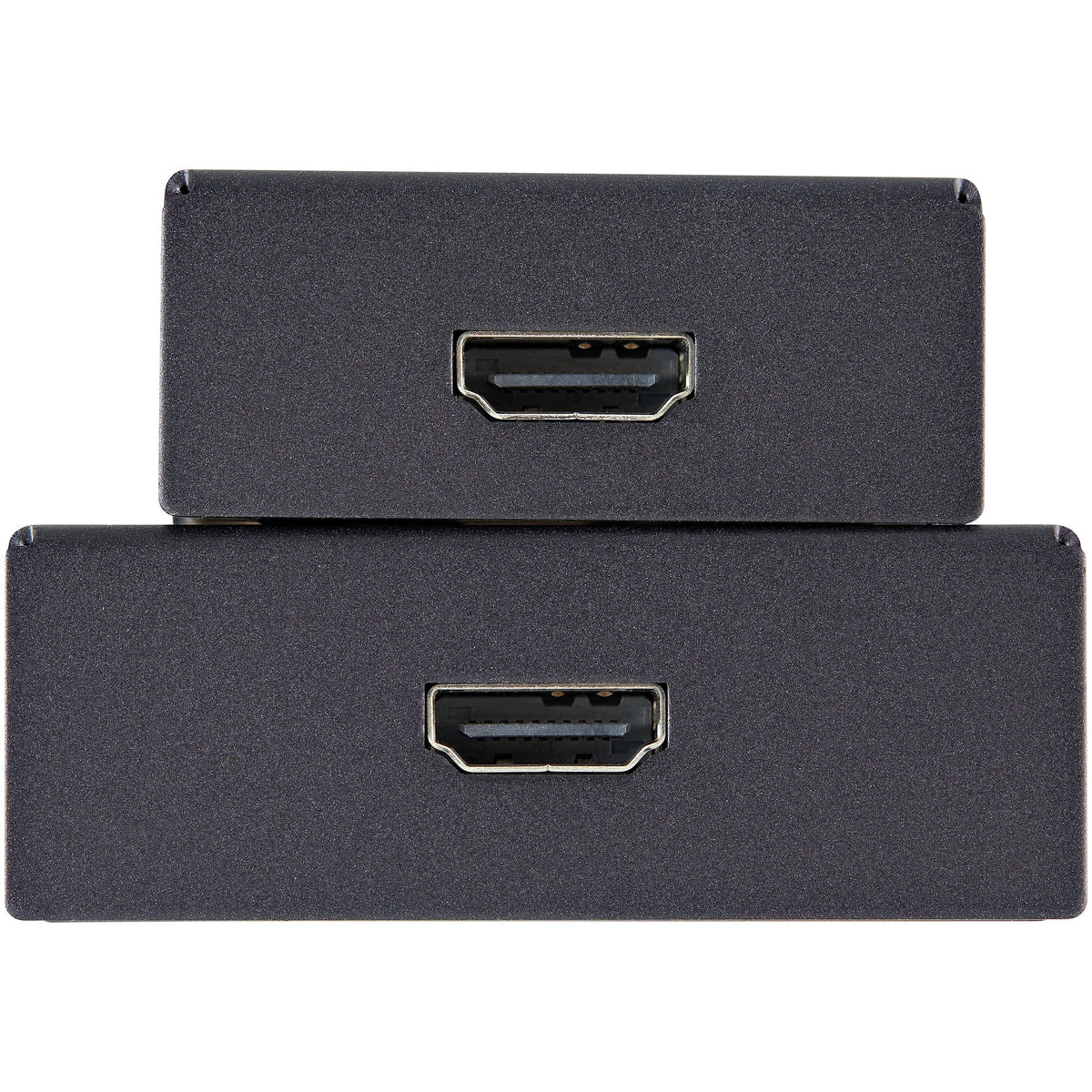

HDMI in
Port (socket) for HDMI input.
1
Number of HDMI outputs
Port (socket) for HDMI output.
1
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100-240 V
Operating voltage
Defines the range of operating voltages available
12 V
Input current
0.5 A
Output current
1,5 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
18 W
External power adapter
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
The measurement or extent of something from side to side.
67 mm
Depth
The distance from the front to the back of something.
80 mm
Height
The measurement of the product from head to foot or from base to top.
25 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
423 g

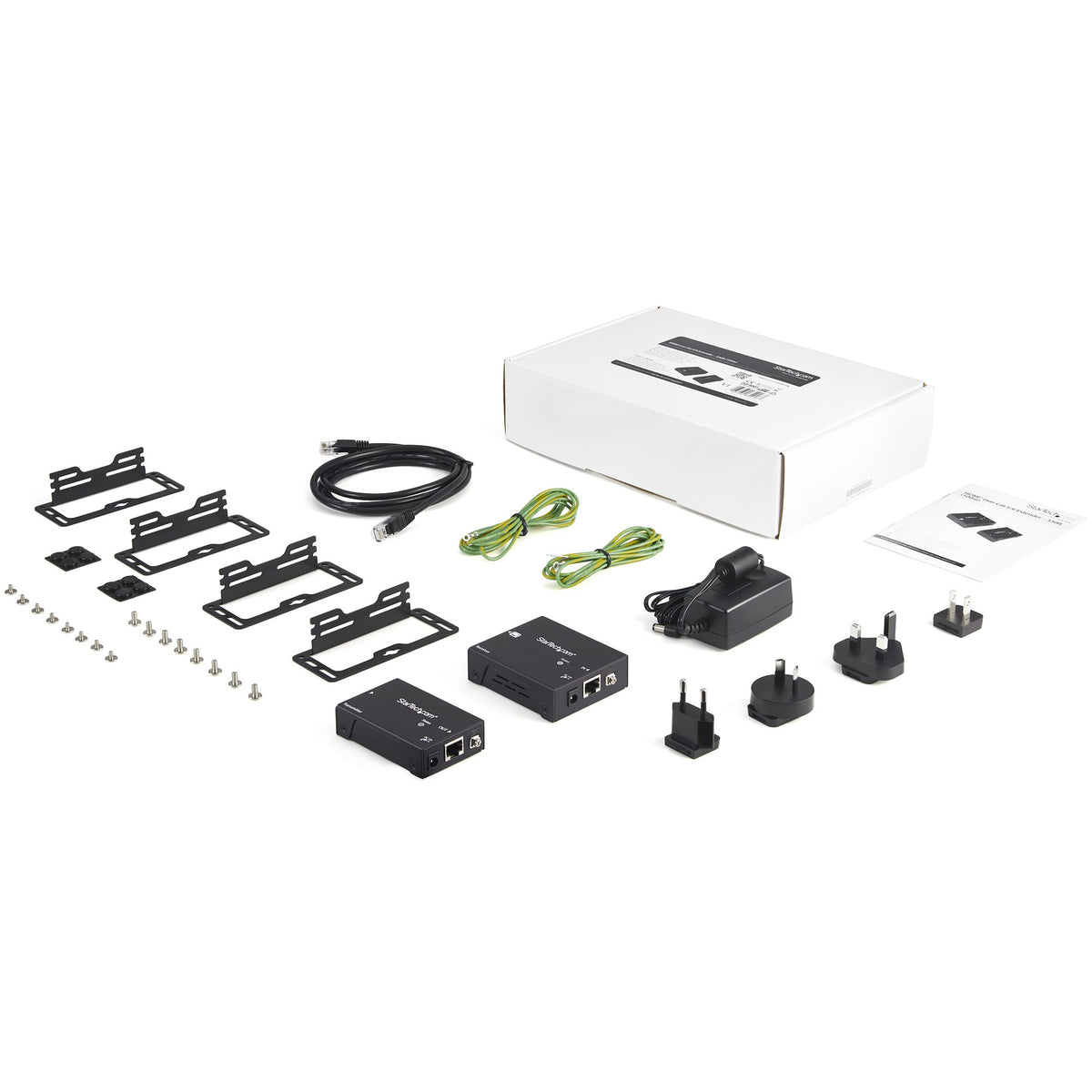

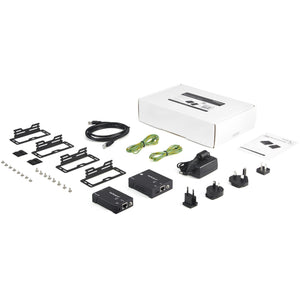

Packaging content
AC adapter included
Cables included
LAN (RJ-45)
Included power plug types
AU, EU, NA, UK
Manual
Mounting brackets included
Grounding wire
