STARTECH .com AV extender AV repeater Black (HDBOOST)
- Regular price
- 38.95$
- Sale price
- 38.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com HDBOOST AV extender AV repeater Black
Brand:StarTech.com
Product name:HDMI Signal Booster - 115 ft - 1080p
Product code:HDBOOST
EAN/UPC:
0065030863209
0065030863209, 065030863209
- INLINE CAPABILITY: You can place the HDMI signal booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
- SIMPLE INSTALLATION: The HDMI booster mounting hardware is included. No CAT5 or CAT6 cable infrastructure required. A power adapter is not required for standard applications, SVUSBPOWER sold separately.
- EASILY CUSTOMIZABLE: The HDMI extender features an equalization switch with ten different levels. The switch lets you adjust the amplification of your signal based on the distance of your cables.
- LONG DISTANCE CAPABILITY: When extending HDMI over long distances, higher resolutions can become unavailable. Using the HDMI amplifier ensures high-definition resolutions up to 1080p at 60Hz.
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Extender is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
Description
Amplify the strength of your HDMI signal to extend your video source up to 115 ft. over standard HDMI cable
This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
Discreet installation
With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances

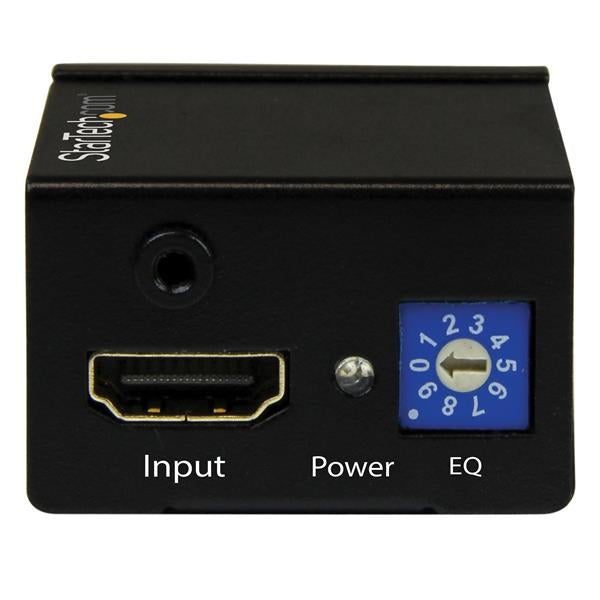

The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.
Maintains high-definition video signals
When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.
The HDBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.
This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
Discreet installation
With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances
The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.
Maintains high-definition video signals
When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.
The HDBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specs
Features
Type
Characteristics of the device.
AV repeater
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1080 pixels
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
35 m
Audio system
System used to play music or speech.
Multichannel
Audio output channels
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 channels
LED indicators
Power
Supported video modes
The video modes that can be displayed by the device.
720p, 1080p
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+)
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Product color
The colour e.g. red, blue, green, black, white.
Black
Certification
CE, FCC
Packaging data
Package dimensions (WxDxH)
143 x 168 x 63 mm
Package width
The distance from one side of the packaging to the other.
143 mm
Package depth
The distance from the front to the back of the packaging.
174 mm
Package height
The distance from the top to the bottom of the packaging.
33 mm
Package weight
Weight of the packaged product in gram.
163 g
Ports & interfaces
HDMI in
Port (socket) for HDMI input.
1
Number of HDMI outputs
Port (socket) for HDMI output.
1
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100-240 V
Operating voltage
Defines the range of operating voltages available
5 V
Output current
1 A
Power plug type
Type N
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Dimensions (WxDxH)
Dimensions of the product (Width x Depth x Height).
42,2 x 54,2 x 26,2 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
72 g
Packaging content

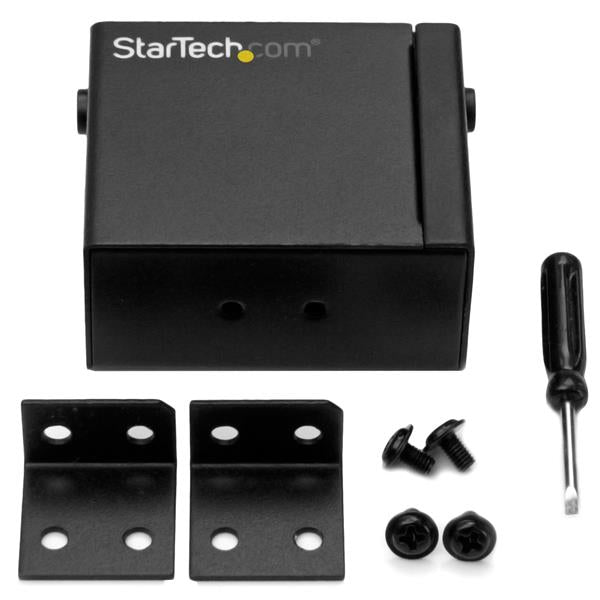

Mounting brackets included
Technical details
Audio support
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
570 mm
Master (outer) case length
538 mm
Master (outer) case height
314 mm
Quantity per master (outer) case
100 pc(s)
