StarTech.com EXTEND-HDMI-4K40C6P1 AV extender AV transmitter & receiver Black
Brand:StarTech.com
Product name:4K HDMI Extender over CAT6/CAT5 Ethernet Cable, 4K 30Hz or 1080p 60Hz Video Extender, HDMI over Ethernet Cable, HDMI Transmitter and Receiver Kit, IR Remote Control
Product code:EXTEND-HDMI-4K40C6P1
EAN/UPC:
0065030895156
0065030895156, 065030895156
- HDMI OVER ETHERNET CABLE: This HDMI Extender over CAT6/5e sends 4K 30Hz up to 130ft (40m) or 1080p up to 230ft (70m) / 7.1ch Audio / 4:4:4 Chroma Subsampling / HDCP 1.4 / Metal Housing with mounting brackets / IR Extension kit incl.
- SINGLE POWER ADAPTER: The power adapter connects to the HDMI Extender Kit's transmitter and powers the receiver for areas where power outlets may be limited; Power is delivered to the receiver over the Ethernet cable using Power over Cable (PoC)
- VERSATILE FUNCTIONALITY: The Transmitter's HDMI output can be used to connect a local display or cascaded to another HDMI extender; The 4K HDMI extender over Ethernet cable is ideal for displaying video over CAT6 for digital signage in malls, stadiums and hospitals

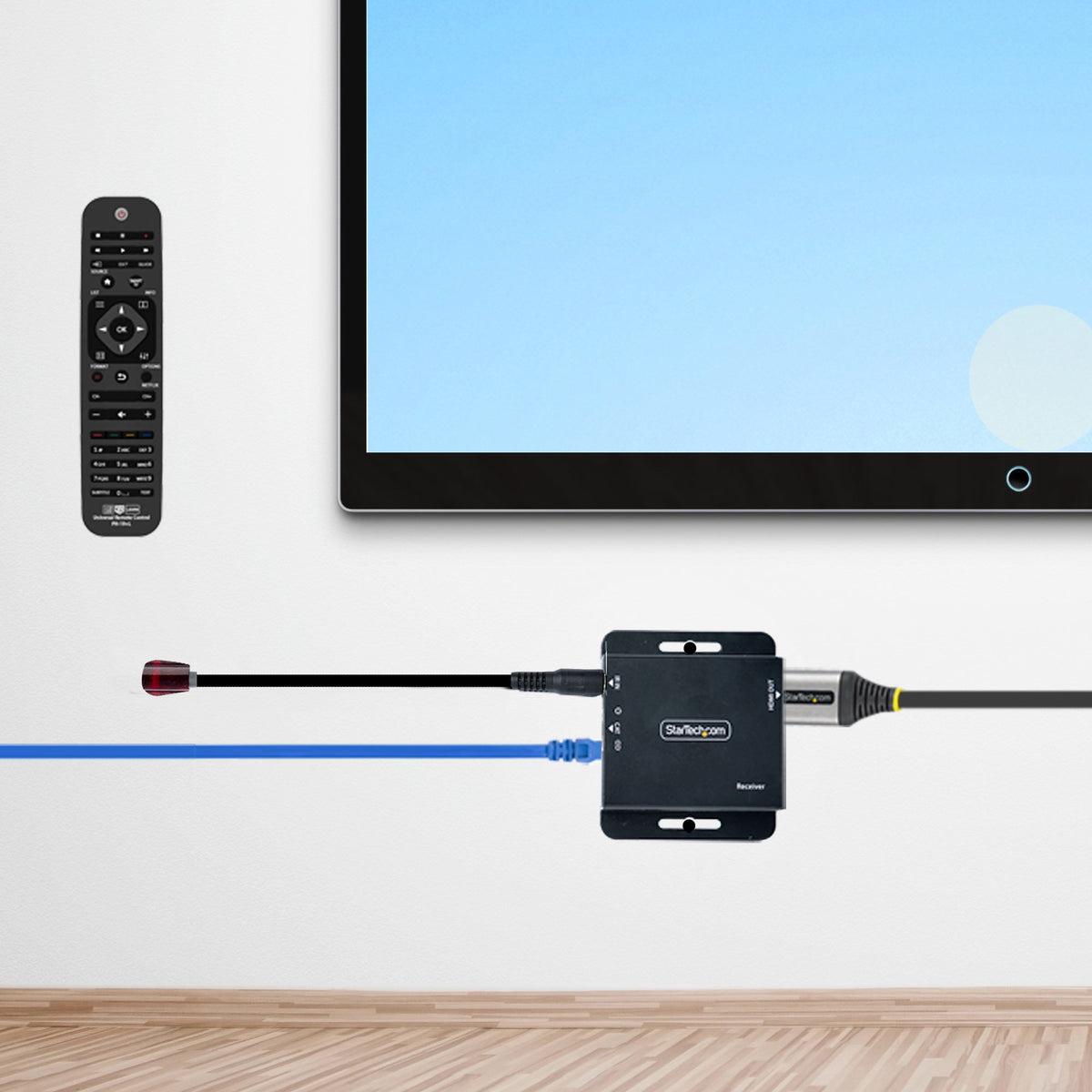

- IR EXTENSION: Extender includes a IR Control Extension Kit with 1x IR Blaster and 1x IR Receiver (5ft/1.5m long cables); IR Blaster/Receiver have adhesive for easy install; Control your IR devices from a remote location (receiver); IR remote not included
- EASY INSTALLATION: No IP configuration, software, or drivers required; Durable metal housing and built-on mounting brackets make it ideal for many environments; Point-to-Point transmitter to receiver connection, using a single CAT6/5e cable
Description
4K 30Hz 130ft | 1080p 230ft | IR Extension | Power over Cable
This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
4K Picture Quality
This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.
Simplify your setup
With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.
Easy Installation

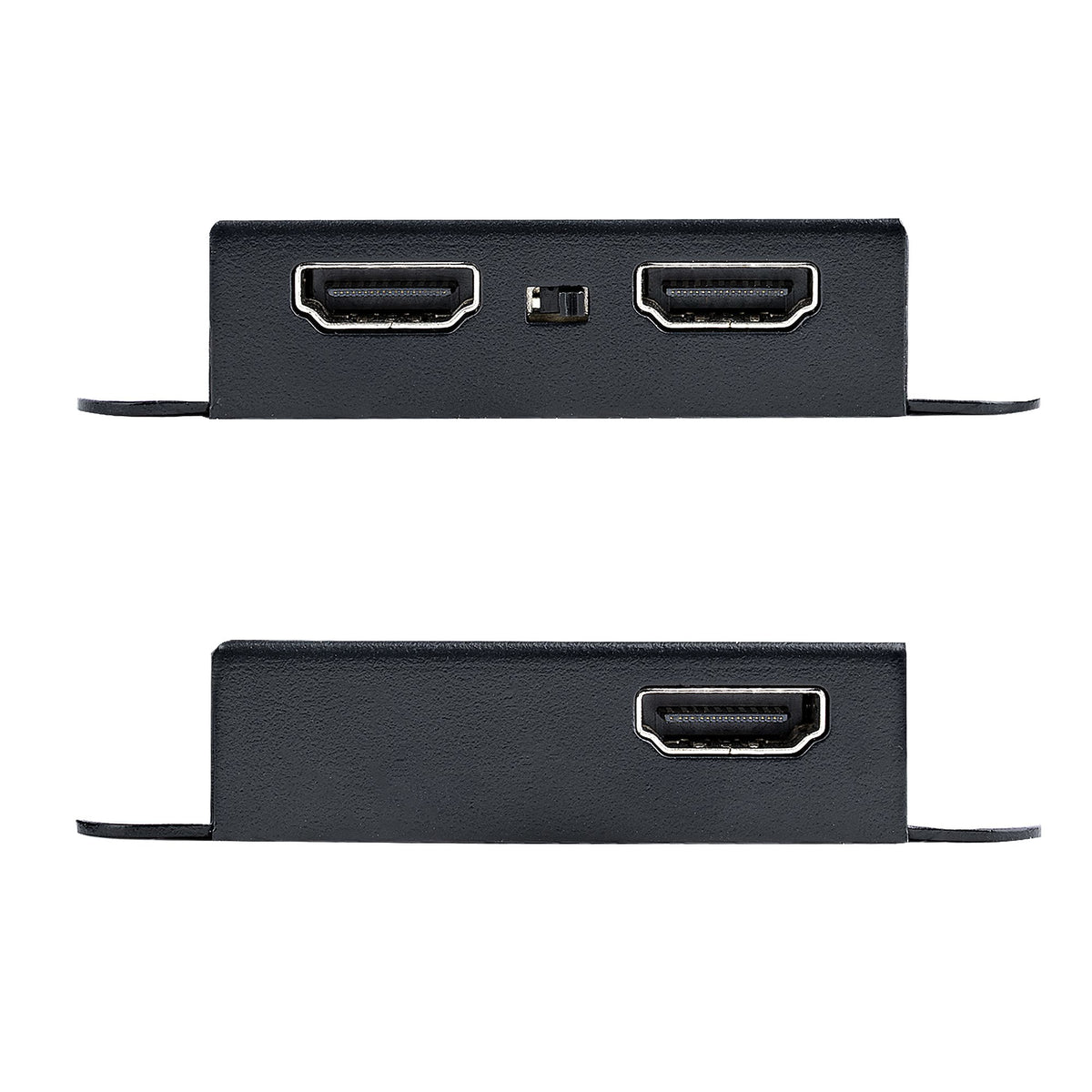

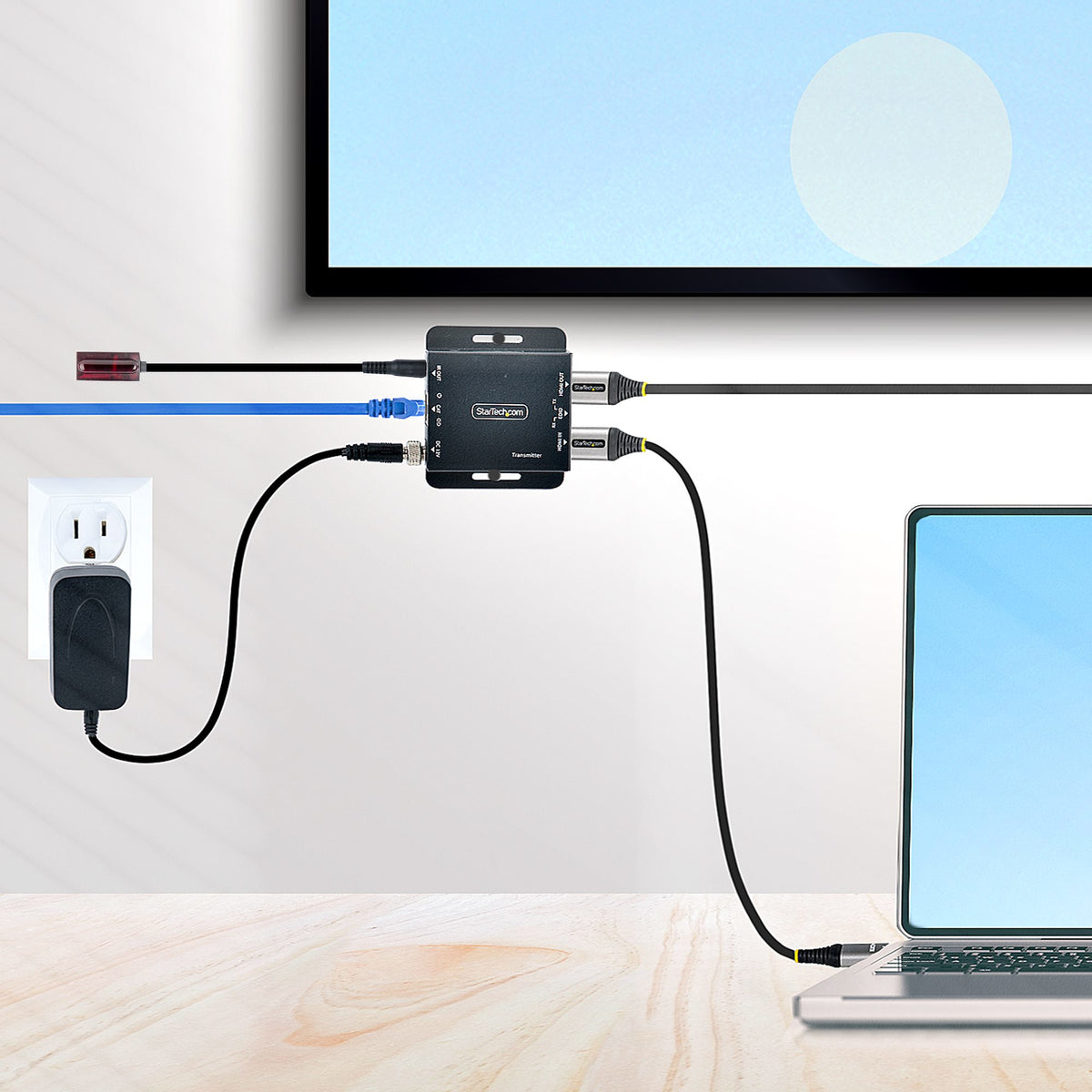

The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display. Plug-and-play installation with no additional software or drivers required. The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.
EXTEND-HDMI-4K40C6P1 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
4K Picture Quality
This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.
Simplify your setup
With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.
Easy Installation
The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display. Plug-and-play installation with no additional software or drivers required. The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.
EXTEND-HDMI-4K40C6P1 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specs
Features
Type
Characteristics of the device.
AV transmitter & receiver
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
70 m
Maximum refresh rate
60 Hz
Audio output channels
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 channels
LED indicators
Link, Power
Bandwidth
10,2 Gbit/s
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Material
The material from which a thing is or can be made e.g. wood, plastic.
Metal
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Daisy chain
HDCP version
1.4
Product color
The colour e.g. red, blue, green, black, white.
Black
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Packaging data
Package width
The distance from one side of the packaging to the other.
116 mm
Package depth
The distance from the front to the back of the packaging.
205 mm
Package height
The distance from the top to the bottom of the packaging.
77 mm
Package weight
Weight of the packaged product in gram.
500 g
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
437 mm
Master (outer) case length
410 mm
Master (outer) case height
378 mm
Quantity per master (outer) case
30 pc(s)
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
Port (socket) for HDMI input.
1
Number of HDMI outputs
Port (socket) for HDMI output.
2
Remote (IR) input
1
Remote (IR) output
1
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Operating voltage
Defines the range of operating voltages available
12 V
Input current
0.3 A
Output current
1 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
0,1 W
External power adapter
Power plug type
Type M
Weight & dimensions
Width
The measurement or extent of something from side to side.
69 mm
Depth
The distance from the front to the back of something.
57 mm
Height
The measurement of the product from head to foot or from base to top.
17 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
130 g

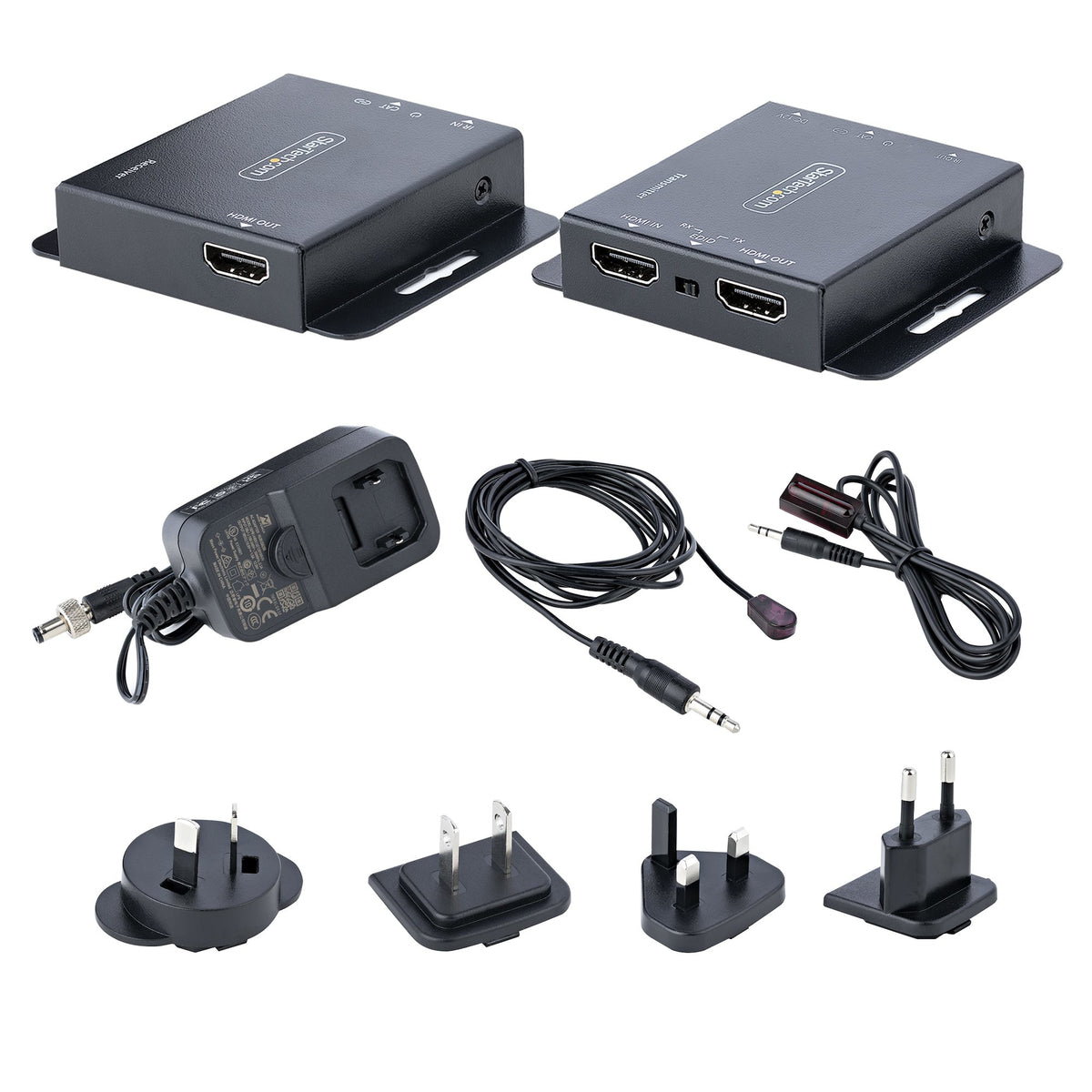

Packaging content
AC adapter included
IR blaster included
IR receiver included
