STARTECH AV extender AV repeater Black (HDBOOST4K2)
- Regular price
- 65.95$
- Sale price
- 65.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com HDBOOST4K2 AV extender AV repeater Black
Brand:StarTech.com
Product name:45 ft. (14 m) HDMI Signal Booster - 4K 60Hz
Product code:HDBOOST4K2
EAN/UPC:
0065030883795
0065030883795, 065030883795
- HDMI SIGNAL BOOSTER: Combine two standard-length HDMI cables into an extra-long cable supporting up to 4K 60Hz at a max total cable length of 45ft (14m), with 22.5ft (7m) from source to repeater, and 22.5ft (7m) from repeater to display
- 4K RESOLUTION SUPPORT: Enjoy astonishing picture quality with support for 4K 60Hz at up to 45 ft. away from your video source; Supports lower resolutions at greater distances such as 1080p at 164ft (50m)
- AUDIO SUPPORT: This HDMI inline repeater supports 7.1 surround sound audio for an complete AV solution
- SMALL FOOTPRINT: Designed to be compact, this HDMI amplifier is easy to setup and can be hidden away for a discreet installation, making it versatile for installation in a variety of environments
- TECHNICAL SPECIFICATIONS: HDMI 2.0 Extender, signal amplifier; Max. Resoution 4K@60Hz; HDCP 2.2; 4:4:4 Chroma subsampling; 7.1ch HDMI surround sound audio; 18Gbps Bandwidth
Description
HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4
Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.
Maintains Ultra HD 4K Video
When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).
The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.
Hassle-Free Installation
With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Supports Several Distances
Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.
Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.
Maintains Ultra HD 4K Video
When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).
The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.
Hassle-Free Installation
With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Supports Several Distances
Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.
Specs
Features
Type
Characteristics of the device.
AV repeater
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2160 pixels
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
14 m
Maximum refresh rate
60 Hz
Audio output channels
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 channels
Bandwidth
18 Gbit/s
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Material
The material from which a thing is or can be made e.g. wood, plastic.
Plastic
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Daisy chain
HDCP version
2.2
Product color
The colour e.g. red, blue, green, black, white.
Black
Certification
REACH, CE, FCC
Packaging data
Package width
The distance from one side of the packaging to the other.
143 mm
Package depth
The distance from the front to the back of the packaging.
174 mm
Package height
The distance from the top to the bottom of the packaging.
33 mm
Package weight
Weight of the packaged product in gram.
113 g
Logistics data
Master (outer) case width
541 mm
Master (outer) case length
550 mm
Master (outer) case height
338 mm
Quantity per master (outer) case
100 pc(s)
Ports & interfaces
HDMI in
Port (socket) for HDMI input.
1
Number of HDMI outputs
Port (socket) for HDMI output.
1
HDMI version
2.0
USB ports quantity
1
USB connector type
The type of USB connector/port that this product has.
Micro-USB B
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
2,5 W
USB powered
The device can be powered via a USB connection.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
The measurement or extent of something from side to side.
52 mm
Depth
The distance from the front to the back of something.
28,5 mm
Height
The measurement of the product from head to foot or from base to top.
13,7 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
15 g

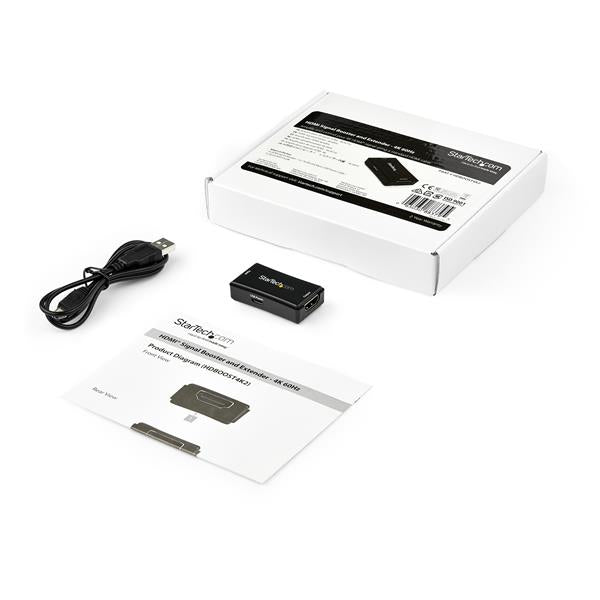

Packaging content
Cables included
USB
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
