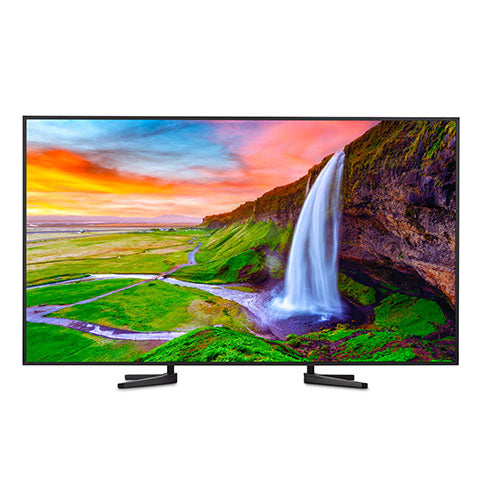

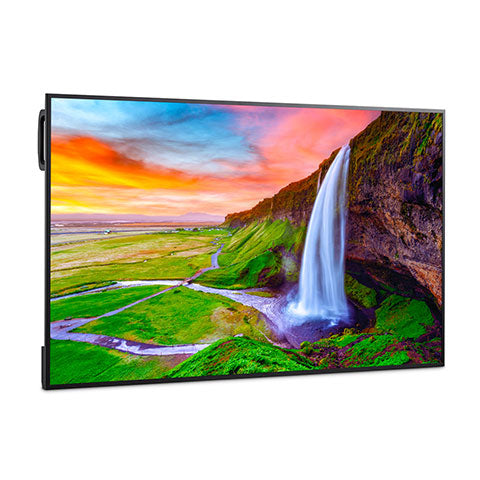

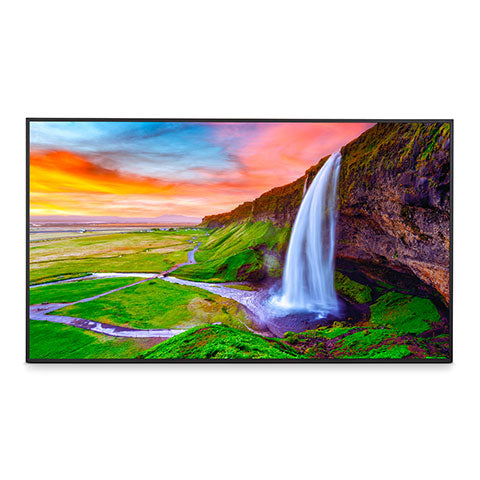

SHARP ELECTRONICS Sharp PN-ME502 Signage Display Digital signage flat panel 127 cm (50") LED 450 cd/m² 4K Ultra HD Black 18/7 (PNME502)
- Regular price
- 1,565.95$
- Sale price
- 1,565.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
Sharp PN-ME502 Signage Display Digital signage flat panel 127 cm (50") LED 450 cd/m² 4K Ultra HD Black 18/7
Brand:Sharp
Product name:PN-ME502
Product code:PN-ME502
EAN/UPC:
0805736078602
0805736078602, 805736078602
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- Powerful System-on-Chip Design to fit your digital signage needs
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C while supporting both legacy NEC and Sharp protocol
- 400 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
- Integrated Media Player allows for playlist creation and scheduled playback via USB or onboard storage
- 18/7 commercial runtimes with built-in real-time clock and full scheduler capabilities
- Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Energy Star 8.0 Certified Product
- Full 3 year commercial warranty to allow for peace of mind and protection of your investment
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
- Fully compatible with Crestron Connected® software as well as Crestron XiO Cloud® Service
Description
Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial Sharp ME Series large format displays. By focusing on bringing high-powered, integrated and easy-to-use media playback to the customer all while maintaining the proven reliability and quality of previous product, the ME series gives customers a reliable mainstream display to fit all of their digital signage needs. The flexible system-on-chip platform not only allows for high-end media playback via USB or internal storage but since these products are powered by Android 13, they also allow the ability to install separate APK’s if a third-party application needs to be installed. On top of this, the updated OSD design includes new and legacy functionality within a brand new aesthetically appealing and stylistic approach.
Specs
Display
Panel type
ADS
LED backlight
A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.
LED backlighting type
Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit.
Direct-lit LED
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
127 cm (50")
Display technology
The technology used in the display e.g. plasma, LED.
LED
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
3840 x 2160 pixels
Display brightness
Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
450 cd/m²
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Touchscreen
A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:9
Response time
The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)
8 ms
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
4000:1
Viewing angle, horizontal
Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
178°
Viewing angle, vertical
Maximum vertical angle at which a display can be viewed with acceptable visual performance.
178°
Horizontal scan range
15 - 135 kHz
Vertical scan range
23 - 76 Hz
Native refresh rate
60 Hz

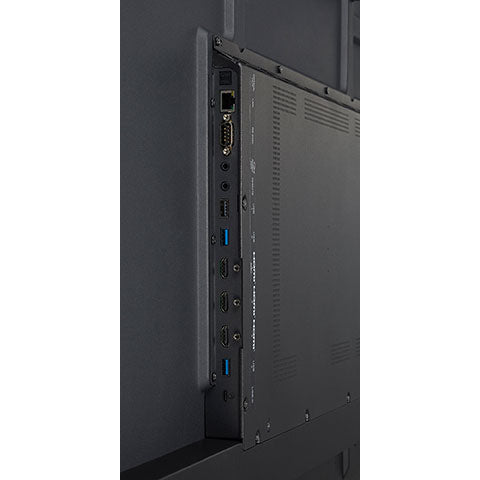

Ports & interfaces
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
3
HDMI version
2.0
DVI port
Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
USB port
The device features a socket into which a USB cable can be plugged.
USB ports quantity
4
USB connector type
The type of USB connector/port that this product has.
USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
RS-232C
Design
Product design
The creation of a plan or convention for the construction of an object or a system.
Digital signage flat panel
Placement supported
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Indoor
Orientation
Horizontal/Vertical
Product colour
The colour e.g. red, blue, green, black, white.
Black
Screen shape
Flat
VESA mounting
Panel mounting interface
The product can be used wih VESA mounting interfaces.
400 x 400 mm
Bezel width (bottom)
9.9 mm
Bezel width (side)
9.9 mm
Bezel width (top)
9.9 mm
Performance
Purpose
What the product is used for.
Commercial
On Screen Display (OSD)
Operating hours (hours/days)
18/7
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
85 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0.5 W
Power consumption (max)
The maximum amount of power used by the device.
105 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
96 kWh
Computer system
Built-in processor
Whether or not a processor is built into the device.
Weight & dimensions
Display width
1118.6 mm
Display depth
62 mm
Display height
639.2 mm
Display weight
11.7 kg
Packaging data
Package width
The distance from one side of the packaging to the other.
1202 mm
Package depth
The distance from the front to the back of the packaging.
156 mm
Package height
The distance from the top to the bottom of the packaging.
719 mm
Package weight
Weight of the packaged product.
17.5 kg
Packaging content
Remote control included
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Batteries included
Cables included
AC, HDMI
Operational conditions
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 80%
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Other features
Power supply type
The type of power supply which this product uses.
Internal
