SHARP ELECTRONICS Sharp data projector Standard throw projector 10000 ANSI lumens LCD WUXGA (1920x1200) Black, White (NP-PA1004UL-W)
- Regular price
- 15,132.95$
- Sale price
- 15,132.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

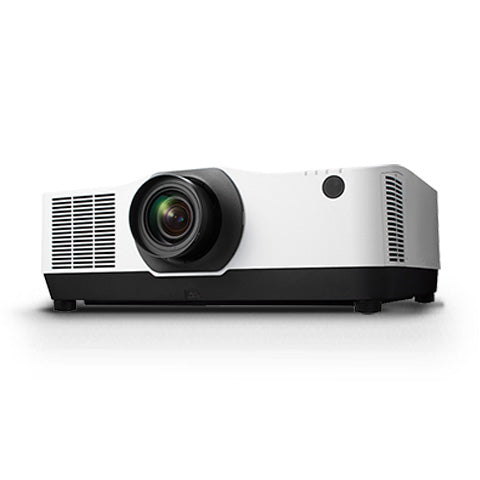

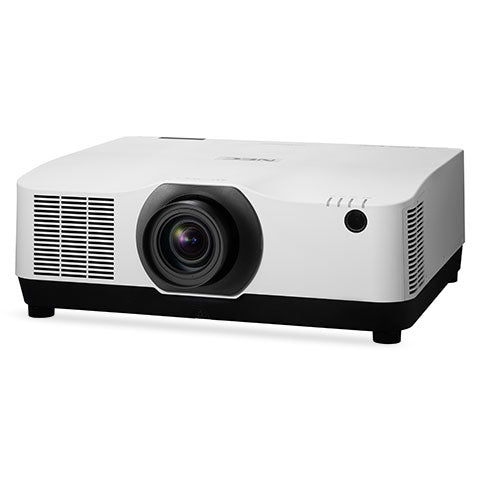

Sharp NP-PA1004UL-W data projector Standard throw projector 10000 ANSI lumens LCD WUXGA (1920x1200) Black, White
Brand:Sharp
Product name:NP-PA1004UL-W
Product code:NP-PA1004UL-W
EAN/UPC:
0805736072976
0805736072976, 805736072976
- 4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs
- Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
- TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Repeater
- Cinema Quality video processing/scaling creates life-like images
- Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
- 10,000-lumen brightness enhances images for most applications
- ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space
Description
NEC's PA1004UL is a 10,000-lumen LCD laser projector (Black cabinet) with advanced professional installation features for higher education and corporate users. A new sealed LCD cooling system developed for the PA Series installation projectors delivers a filter/maintenance free projector with while delivering almost whisper quiet operation. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities along with built-in edge blending and stacking. The HDBaseT input and seperate HDBaseT repeater provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
Dual Computer Inputs
Ensures quick switching between presentations.
Edge Blending
Blend multiple projectors together to create not standard images
PIP/POP/Side-by-Side
Picture-in-picture (PIP) allows for a second frame within the screen area. Picture-on-picture (POP) surrounds the standard frame with multiple frames. Side-by-side places two sources adjacent to one another.
Motorized Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.
Quick Startup and Quick Power-Off
Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.
TileMatrix™
Allows users to customize a video wall configuration using advanced On Screen Display controls.
VORTEX Technology Plus
Improves white level, color accuracy, dynamic range and varying levels of black in an image.
Advanced AccuBlend™
Ensures detailed images when non-native resolution sources are connected to the projector.
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Stacking Capabilities
Allows the projectors to boost an image’s brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Geometric Correction
Allows you to project on spheres, cylinders, corner angles and more.
Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.
4K Ready
Display stunning 4K content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details.
Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
Power Management
Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
Dual Computer Inputs
Ensures quick switching between presentations.
Edge Blending
Blend multiple projectors together to create not standard images
PIP/POP/Side-by-Side
Picture-in-picture (PIP) allows for a second frame within the screen area. Picture-on-picture (POP) surrounds the standard frame with multiple frames. Side-by-side places two sources adjacent to one another.
Motorized Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.
Quick Startup and Quick Power-Off
Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.
TileMatrix™
Allows users to customize a video wall configuration using advanced On Screen Display controls.
VORTEX Technology Plus
Improves white level, color accuracy, dynamic range and varying levels of black in an image.
Advanced AccuBlend™
Ensures detailed images when non-native resolution sources are connected to the projector.
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Stacking Capabilities
Allows the projectors to boost an image’s brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Geometric Correction
Allows you to project on spheres, cylinders, corner angles and more.
Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.
4K Ready
Display stunning 4K content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details.
Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
Power Management
Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
Video
Specs
Projector
Screen size compatibility
The different screen sizes which the device can work with.
1016 - 12700 mm (40 - 500")
Projection distance
The maximum length at which an image can be projected.
0.74 - 20.9 m
Projector brightness
10000 ANSI lumens
Projection technology
LCD
Projector native resolution
WUXGA (1920x1200)
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
3000000:1
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:10
Keystone correction, horizontal
-40 - 40°
Keystone correction, vertical
-40 - 40°
Horizontal synchronization (min)
15 kHz
Horizontal synchronization (max)
153 kHz
Vertical synchronization (min)
24 kHz
Vertical synchronization (max)
120 kHz
Light source
Light source type
Laser
Service life of light source
20000 h
Lens system
Focus
Motorized
Aperture range (F-F)
Aperture range of the device's optics, expressed in f-stops.
2 - 6.27
Throw ratio
0.8:1 Manual Fixed Lens , 1.16 – 1.56:1 Manual Zoom Lens w/lens shift , 1.46 – 3.02:1 Manual Zoom Lens w/lens shift , 2.90 – 4.79:1 Manual Zoom Lens w/lens shift , 4.59 – 7.02:1 Manual Zoom Lens w/lens shift , 0.32:1 Ultra-Short Throw Lens / 0.79 to 1.11:1 Motorized Zoom Lens / 1.30 to 3.02:1 Motorized Zoom Lens / 2.99 to 5.93:1 Motorized Zoom Lens
Video
Analog signal format system
The supported protocols for exchanging analog signals.
NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HD
Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
3D
The device can be used with 3D technology.
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 4096 x 2160
Supported video modes
The video modes that can be displayed by the device.
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p

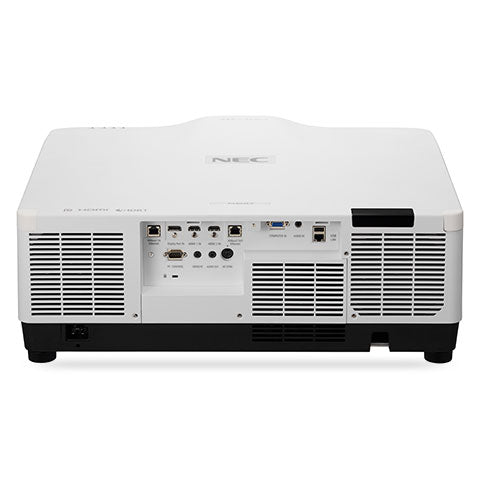

Ports & interfaces
HDMI version
2.0
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
1
HDBaseT port
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
Audio (L/R) in
The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).
1
Audio (L/R) out
The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).
1
Serial interface type
RS-232
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Features
Noise level (economic mode)
32 dB
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
35 dB
Separate H/V sync
Device has separate horizontal and vertical synchronization.
Composite sync
Combines horizontal and vertical synchronization onto one pair of wires. When used in RGB connections, four separate signals are sent (Red, Green, Blue, Sync).
Sync-on-green (SOG)
Combines composite sync with the green signal in RGB. Only three signals are sent (Red, Green with Sync, Blue).
Multimedia
Built-in speaker(s)
The device contains speaker(s) to produce sound.
Design
Market positioning
Under which category can the device be positioned in the market, e.g. camera phone.
Education
Product type
The sub-category of the product.
Standard throw projector
Product colour
The colour e.g. red, blue, green, black, white.
Black, White
Placement
Where the product can be placed e.g. floor, wall.
Ceiling, Floor
Display
Built-in display
A display which is part of the product, so you do not need to attach another display.
Display
The description of display that can includes display type, resolution, size etc.
LCD
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
1.93 cm (0.76")
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
515 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0.8 W
Power consumption (max)
The maximum amount of power used by the device.
635 W
Power consumption (PowerSave)
0.22 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100-240 V
AC input frequency
50-60 Hz
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 50 °C
Operating relative humidity (H-H)
25 - 85%
Storage relative humidity (H-H)
20 - 80%
Operating altitude
0 - 3650 m
Weight & dimensions
Width
The measurement or extent of something from side to side.
599 mm
Depth
The distance from the front to the back of something.
219 mm
Height
The measurement of the product from head to foot or from base to top.
490 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
24.4 kg
Package width
The distance from one side of the packaging to the other.
735 mm
Package depth
The distance from the front to the back of the packaging.
359 mm
Package height
The distance from the top to the bottom of the packaging.
631 mm
Package weight
Weight of the packaged product.
28.9 kg
