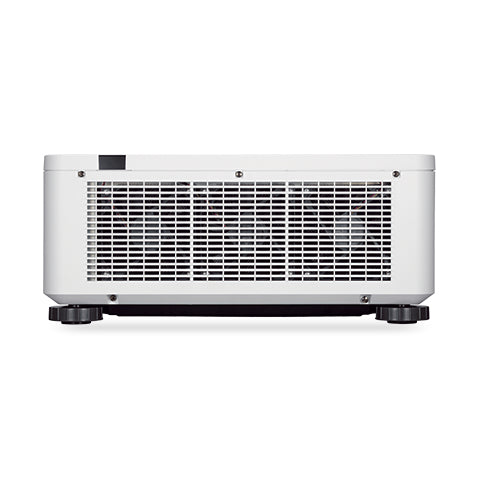

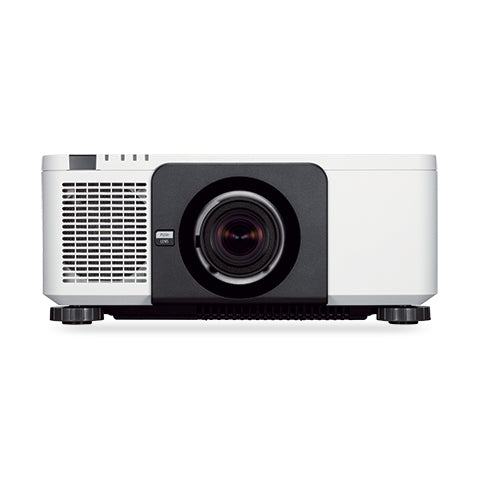

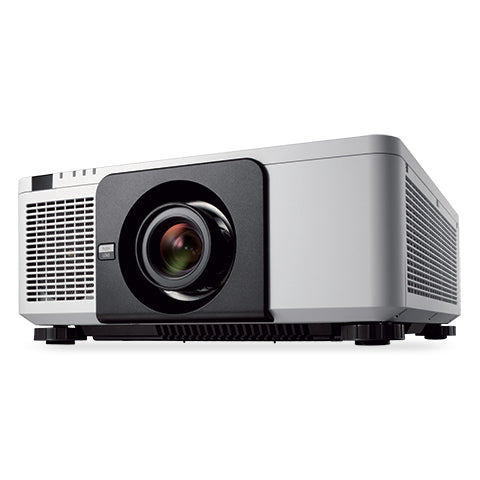

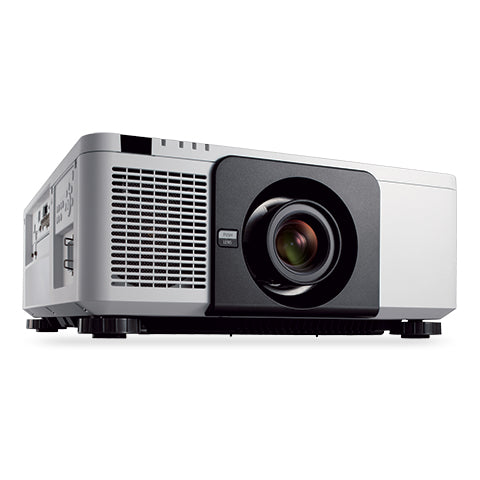

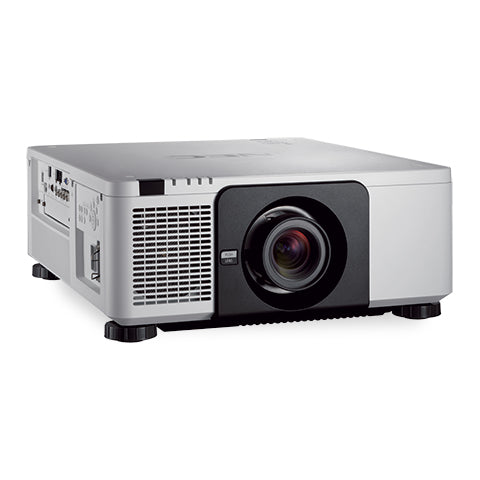

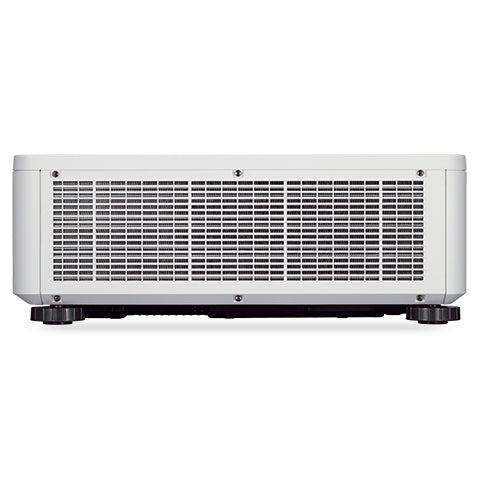

SHARP ELECTRONICS NEC PX1004UL Large venue projector 10000 ANSI lumens DLP 2160p (3840x2160) White (NP-PX1004UL-W-18)
- Regular price
- 19,513.95$
- Sale price
- 19,513.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
NEC PX1004UL Large venue projector 10000 ANSI lumens DLP 2160p (3840x2160) White
Brand:NEC
Product name:PX1004UL
Product code:NP-PX1004UL-W-18
EAN/UPC:
0805736063004
0805736063004, 805736063004
Description
Think about projection technology in a whole new light! The NEC PX1004UL is a powerful installation laser projector with a laser/phosphor light source that makes it perfect for all-new applications. With more consistent brightness, improved color fidelity, and tilt-free or portrait modes these laser projectors will deliver in new verticals such as retail, simulation, and theme park installations. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership!
- High-brightness, lower power consumption enhance always-on capabilities of laser projection
- Ideal for new applications such as digital signage
- Lamp-less operation reduces TCO
- Eco-friendly features, minimal maintenance and cost savings mean these laser projectors are still great for demanding integration applications such as higher education and corporate
- TileMatrix enables 4Kx2K resolution utilizing digital loop through capabilities
- Seamlessly blend multiple images with integrated edge blending capabilities
- Built-in HDBaseT enabels simplified installations with a single cable for video, audio, and control signals.
- High-brightness, lower power consumption enhance always-on capabilities of laser projection
- Ideal for new applications such as digital signage
- Lamp-less operation reduces TCO
- Eco-friendly features, minimal maintenance and cost savings mean these laser projectors are still great for demanding integration applications such as higher education and corporate
- TileMatrix enables 4Kx2K resolution utilizing digital loop through capabilities
- Seamlessly blend multiple images with integrated edge blending capabilities
- Built-in HDBaseT enabels simplified installations with a single cable for video, audio, and control signals.
Specs
Projector
Screen size compatibility
The different screen sizes which the device can work with.
1016 - 7620 mm (40 - 300")
Projection distance
The maximum length at which an image can be projected.
0.5 - 54.8 m
Contrast ratio (dynamic)
A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.
10000:1
Projector brightness
10000 ANSI lumens
Projection technology
DLP
Projector native resolution
2160p (3840x2160)
Keystone correction, horizontal
-40 - 40°
Keystone correction, vertical
-40 - 40°
Matrix size
1.7 cm (0.67")
Matrix type
DMD
Horizontal synchronization (min)
15 kHz
Horizontal synchronization (max)
153 kHz
Vertical synchronization (min)
0.024 kHz
Vertical synchronization (max)
0.12 kHz
Light source
Service life of light source
20000 h
Lens system
Horizontal lens shift range
-0.1 - 0.2°
Vertical lens shift range
-0.3 - 5°
Video
Analog signal format system
The supported protocols for exchanging analog signals.
NTSC, NTSC 4.43, PAL 60, PAL M, PAL N, SECAM
Full HD
Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
3D
The device can be used with 3D technology.
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA)
Supported video modes
The video modes that can be displayed by the device.
480i, 480p, 576i, 576p, 720p, 1080i, 1080p

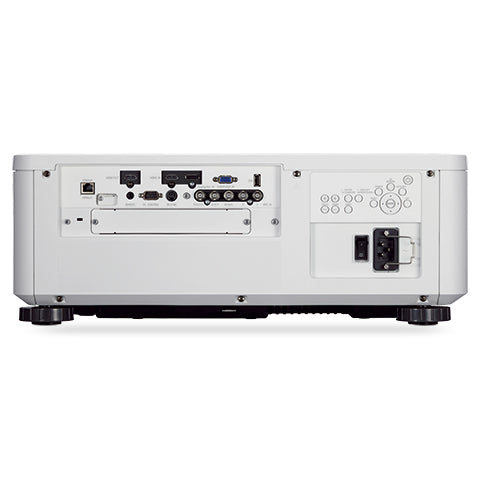

Ports & interfaces
HDMI connector type
Full-size
HDMI version
1.4
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
1
Serial interface type
RS-232
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
Remote (IR) output
1
BNC input ports
Ports (sockets) to connect BNC inputs. The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable.
1
DVI port
Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
AC (power) in
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Storage
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Features
Noise level (economic mode)
38 dB
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
42 dB
Separate H/V sync
Device has separate horizontal and vertical synchronization.
Composite sync
Combines horizontal and vertical synchronization onto one pair of wires. When used in RGB connections, four separate signals are sent (Red, Green, Blue, Sync).
Sync-on-green (SOG)
Combines composite sync with the green signal in RGB. Only three signals are sent (Red, Green with Sync, Blue).
Certification
UL (UL60950-1/IEC60825-1 Ed.2), FCC 15 A, C-UL (CSA60950-1/IEC60825-1 Ed.3/IEC62471-5), ICES-003 A
Design
Product type
The sub-category of the product.
Large venue projector
Product colour
The colour e.g. red, blue, green, black, white.
White
Placement
Where the product can be placed e.g. floor, wall.
Desktop
Display
Built-in display
A display which is part of the product, so you do not need to attach another display.
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
1220 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
4.3 W
Power consumption (PowerSave)
0.2 W
Power consumption (economy mode)
625 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50 - 60 Hz
Software
Mac compatibility
Product can be used with Apple Mac software and/or hardware.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
5 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 50 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Width
The measurement or extent of something from side to side.
500 mm
Depth
The distance from the front to the back of something.
583 mm
Height
The measurement of the product from head to foot or from base to top.
216 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
29 kg
Packaging content
Remote control included
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Batteries included
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Manual
Other features
RS-232 ports
The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.
1
