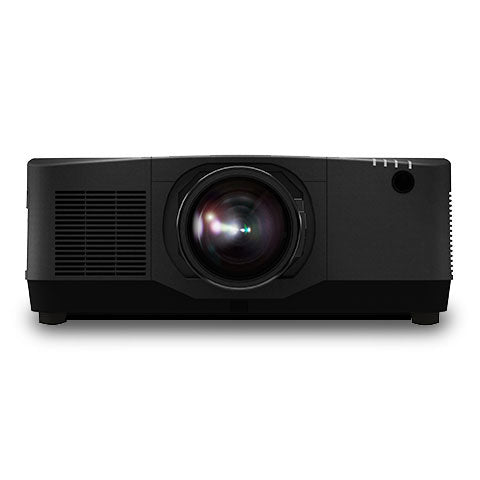

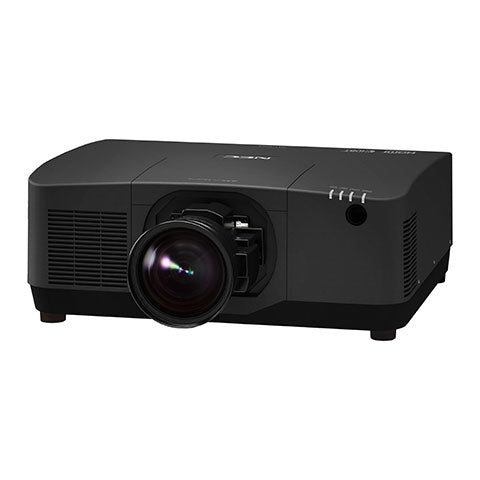

SHARP ELECTRONICS NEC data projector Standard throw projector 15000 ANSI lumens LCD WUXGA (1920x1200) Black (NP-PA1505UL-B)
- Regular price
- 22,582.95$
- Sale price
- 22,582.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
NEC NP-PA1505UL-B data projector Standard throw projector 15000 ANSI lumens LCD WUXGA (1920x1200) Black
Brand:NEC
Product name:NP-PA1505UL-B
Product code:NP-PA1505UL-B
EAN/UPC:
0805736078541
0805736078541, 805736078541
Description
15,000-Lumen Professional Installation Projector w/ 4K support
NEC's PA1505UL-B (black cabinet) is a 14,000-lumen (Center: 15,000lm) LCD laser projector with advanced professional installation features for higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power and various control signals. HDBaseT Repeater allows cascading of the signal for edge-blending or stacking applications.
- 4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip from “Ultra HD Blu-ray” and “4K TV broadcasting” without the loss of critical details.
- Learning of basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
- Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP and PJ link allow for complete interactivity and control.
- 14,000-lumen (Center: 15,000lm) brightness provides brilliant images in most high ambient lighting situations.
- ProAssist is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.
NEC's PA1505UL-B (black cabinet) is a 14,000-lumen (Center: 15,000lm) LCD laser projector with advanced professional installation features for higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power and various control signals. HDBaseT Repeater allows cascading of the signal for edge-blending or stacking applications.
- 4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip from “Ultra HD Blu-ray” and “4K TV broadcasting” without the loss of critical details.
- Learning of basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
- Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP and PJ link allow for complete interactivity and control.
- 14,000-lumen (Center: 15,000lm) brightness provides brilliant images in most high ambient lighting situations.
- ProAssist is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.
Video
Specs
Projector
Screen size compatibility
The different screen sizes which the device can work with.
1524 - 12700 mm (60 - 500")
Projection distance
The maximum length at which an image can be projected.
1.09 - 43 m
Projector brightness
15000 ANSI lumens
Projection technology
LCD
Projector native resolution
WUXGA (1920x1200)
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
3000000:1
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:10
Projector brightness (economic mode)
13500 ANSI lumens
Keystone correction, horizontal
-40 - 40°
Keystone correction, vertical
-30 - 30°
Horizontal synchronization (min)
24 kHz
Horizontal synchronization (max)
153 kHz
Vertical synchronization (min)
50 kHz
Vertical synchronization (max)
120 kHz
Light source
Light source type
Laser
Service life of light source
20000 h
Lens system
Focus
Motorized
Zoom capability
The amount that the camera lens can zoom.
Horizontal lens shift range
-25 - 25%
Vertical lens shift range
-65 - 65%
Video
Analog signal format system
The supported protocols for exchanging analog signals.
NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HD
Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 3840 x 2160
Supported video modes
The video modes that can be displayed by the device.
480i, 480p, 576i, 576p, 720p, 1080i, 1080p

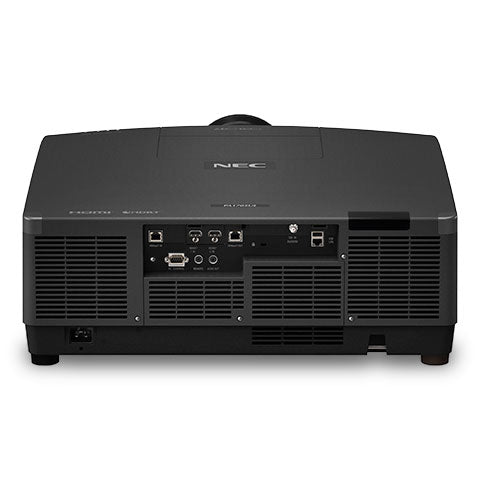

Ports & interfaces
HDMI version
2.2/1.4
HDBaseT port
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
Serial interface type
RS-232
PC Audio out
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
3G-SDI input
1
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Features
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
38 dB
Certification
USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.62368-1-18,3rd Edition, ICES-003 Issue 7(ANSI C63.4-2014)
Design
Product type
The sub-category of the product.
Standard throw projector
Product colour
The colour e.g. red, blue, green, black, white.
Black
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
960 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0.15 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100-240 V
AC input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 45 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 50 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 80%
Operating altitude
0 - 12000 m
Weight & dimensions
Width
The measurement or extent of something from side to side.
599 mm
Depth
The distance from the front to the back of something.
490 mm
Height
The measurement of the product from head to foot or from base to top.
238 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
28.9 kg
Package width
The distance from one side of the packaging to the other.
739 mm
Package depth
The distance from the front to the back of the packaging.
629 mm
Package height
The distance from the top to the bottom of the packaging.
382 mm
Package weight
Weight of the packaged product.
32.6 kg
Packaging content
Remote control included
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Manual
Technical details
Current
11.6 A
