LENOVO RAID controller PCI Express x8 3.0 12 Gbit/s (4Y37A72484)
- Regular price
- 1,776.95$
- Sale price
- 1,776.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

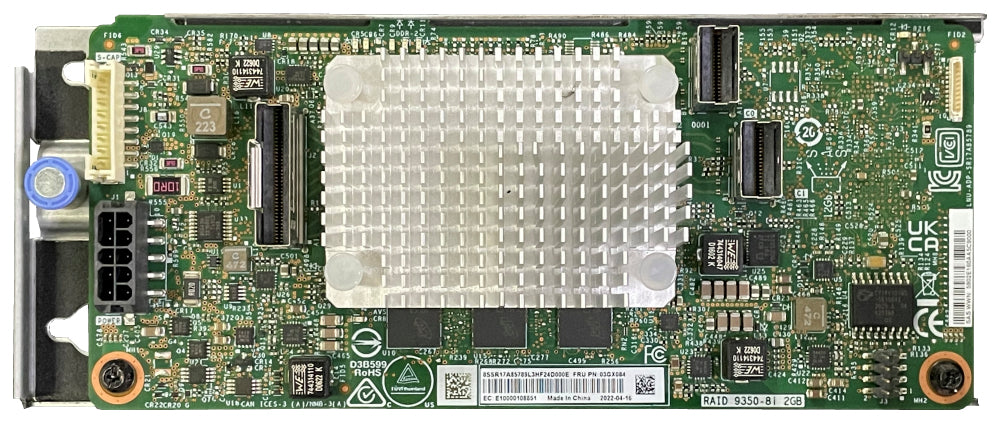

Lenovo 4Y37A72484 RAID controller PCI Express x8 3.0 12 Gbit/s
Brand:Lenovo
Product name:4Y37A72484
Product code:4Y37A72484
EAN/UPC:
0889488588022
0889488588022, 889488588022
Description
The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Specs
Ports & interfaces
Supported storage drive interfaces
SAS, Serial ATA
Host interface
Interface that enables a host controller to communicate with a driver.
PCI Express x8
PCI Express slots version
3.0
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Yes
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 55 °C
Operating relative humidity (H-H)
20 - 80%
Performance
RAID levels
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
0, 1, 5, 6, 10, 50, 60
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
12 Gbit/s
SSD support
Solid-state drive (SSD), a type of memory, can be used with this product.
Internal memory
The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
2000 MB
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Microchip Luxor ROC PM8204
JBOD function
Number of devices supported
The amount of devices that can be used with this product.
8
Hot-swap
Certification
FCC Part 15 Class A
Australia/New Zealand (AS/NZS 3548)
Canada (ICES-003 Class B)
Europe (EN55032/EN55024)
Japan VCCI
Korea KCC
RoHS compliant
EN/IEC/UL 60950
USA (FCC 47 CFR part 15 Subpart B class B)
