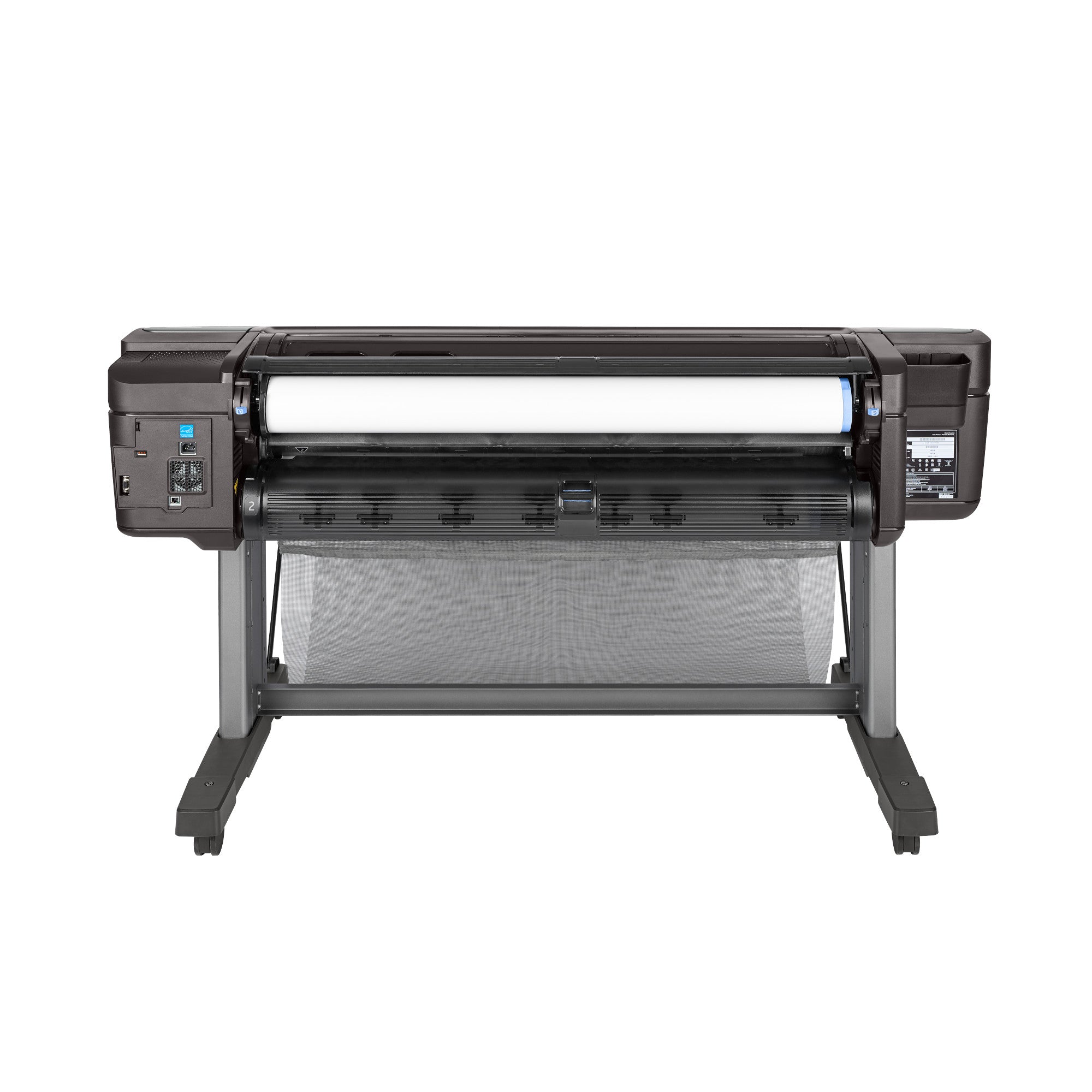

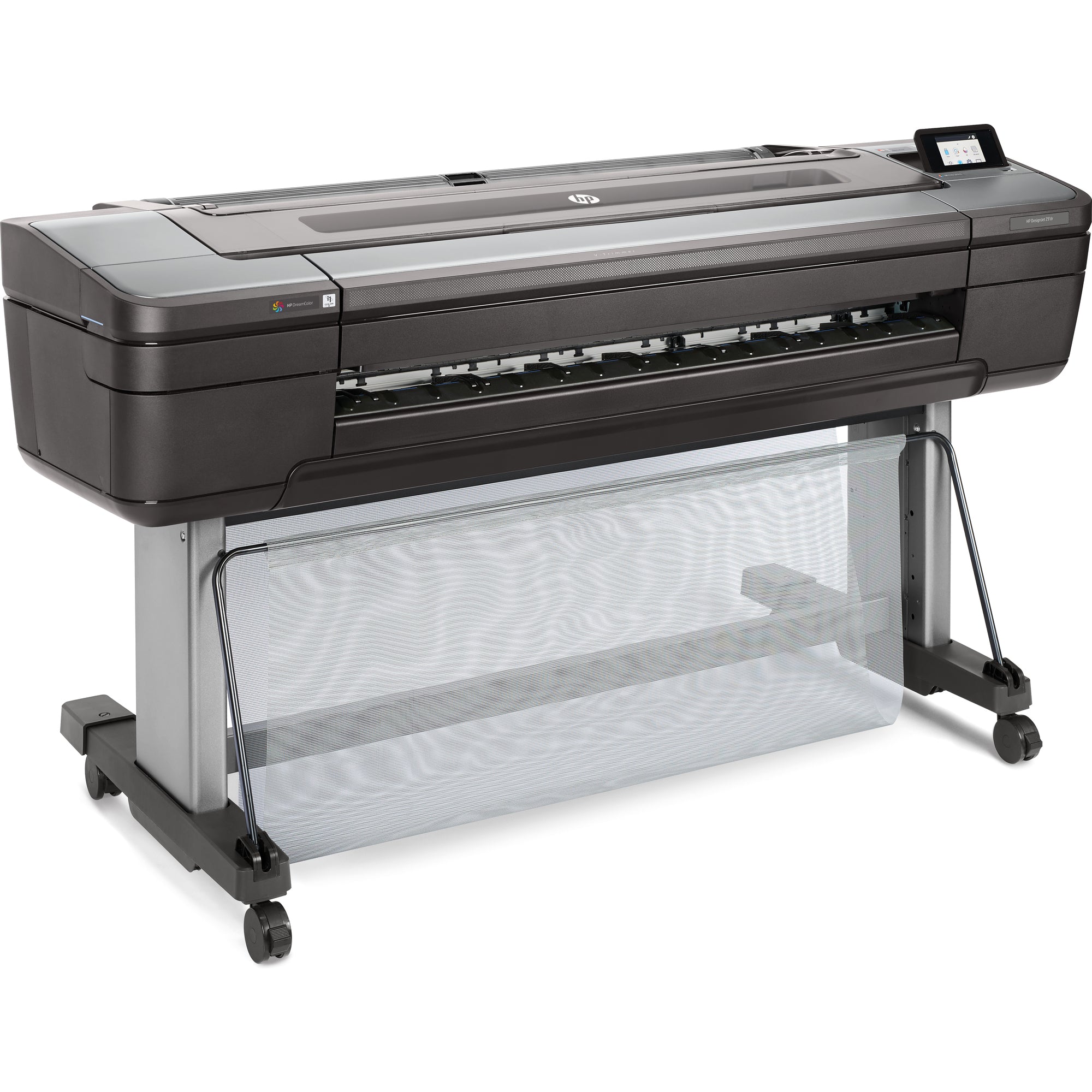

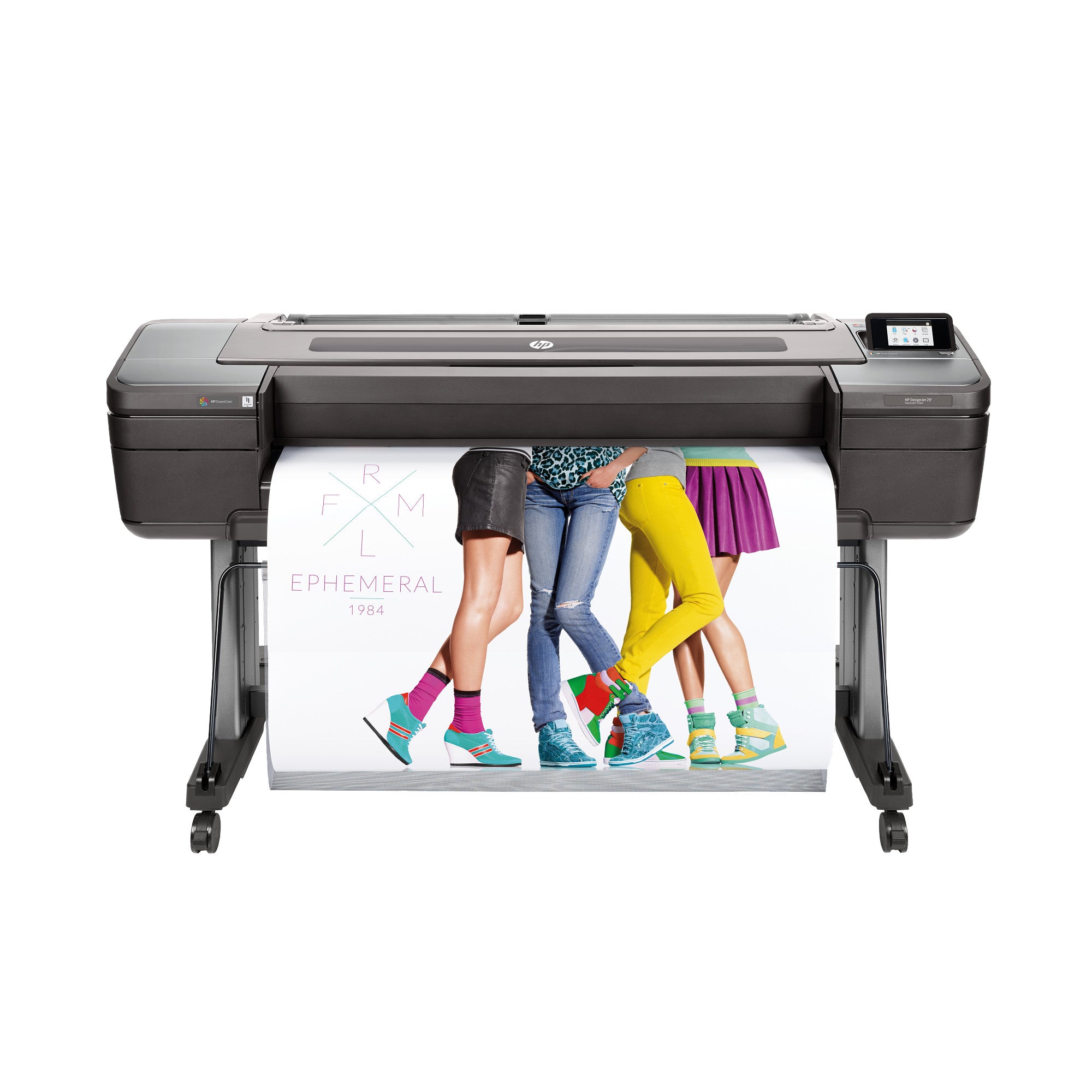

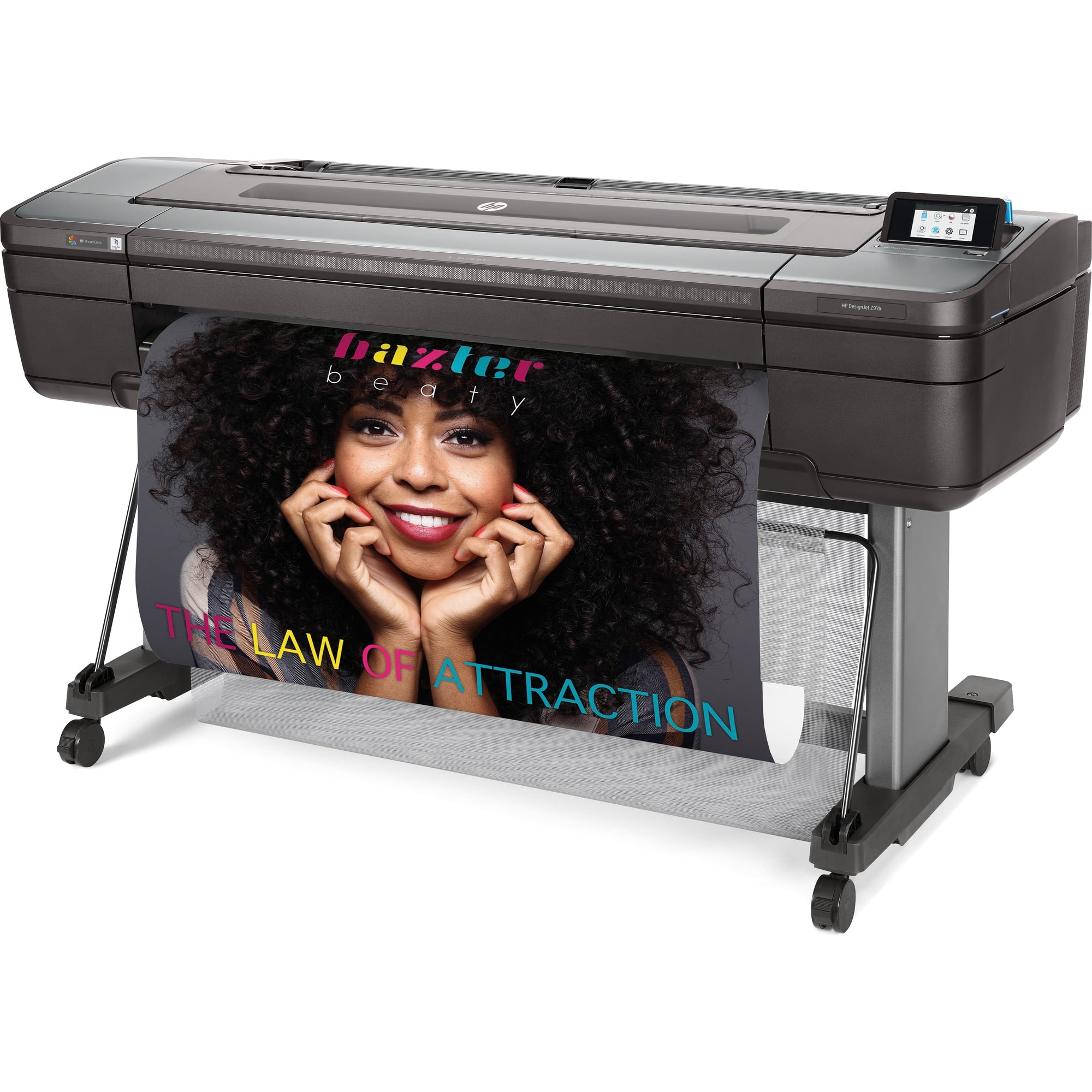

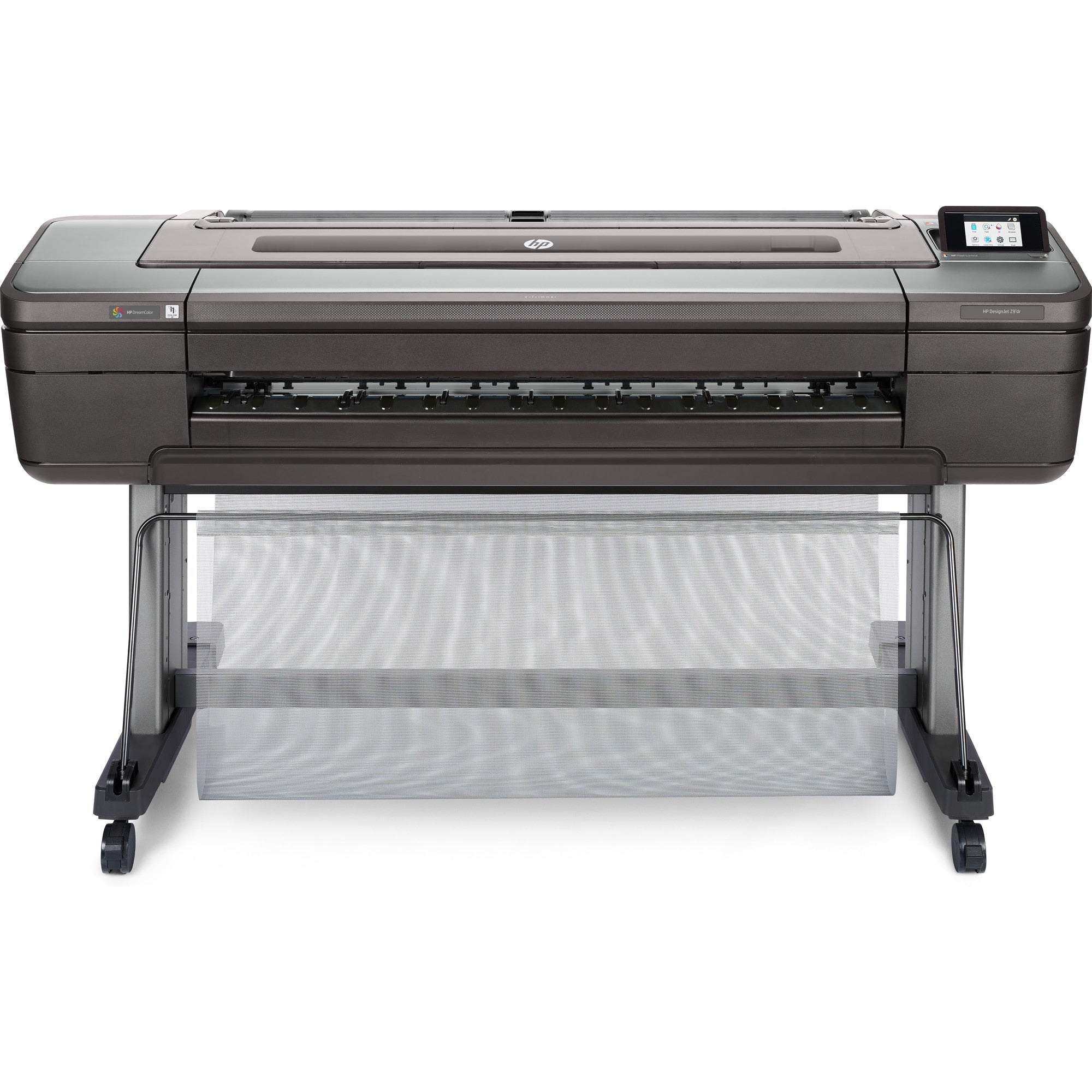

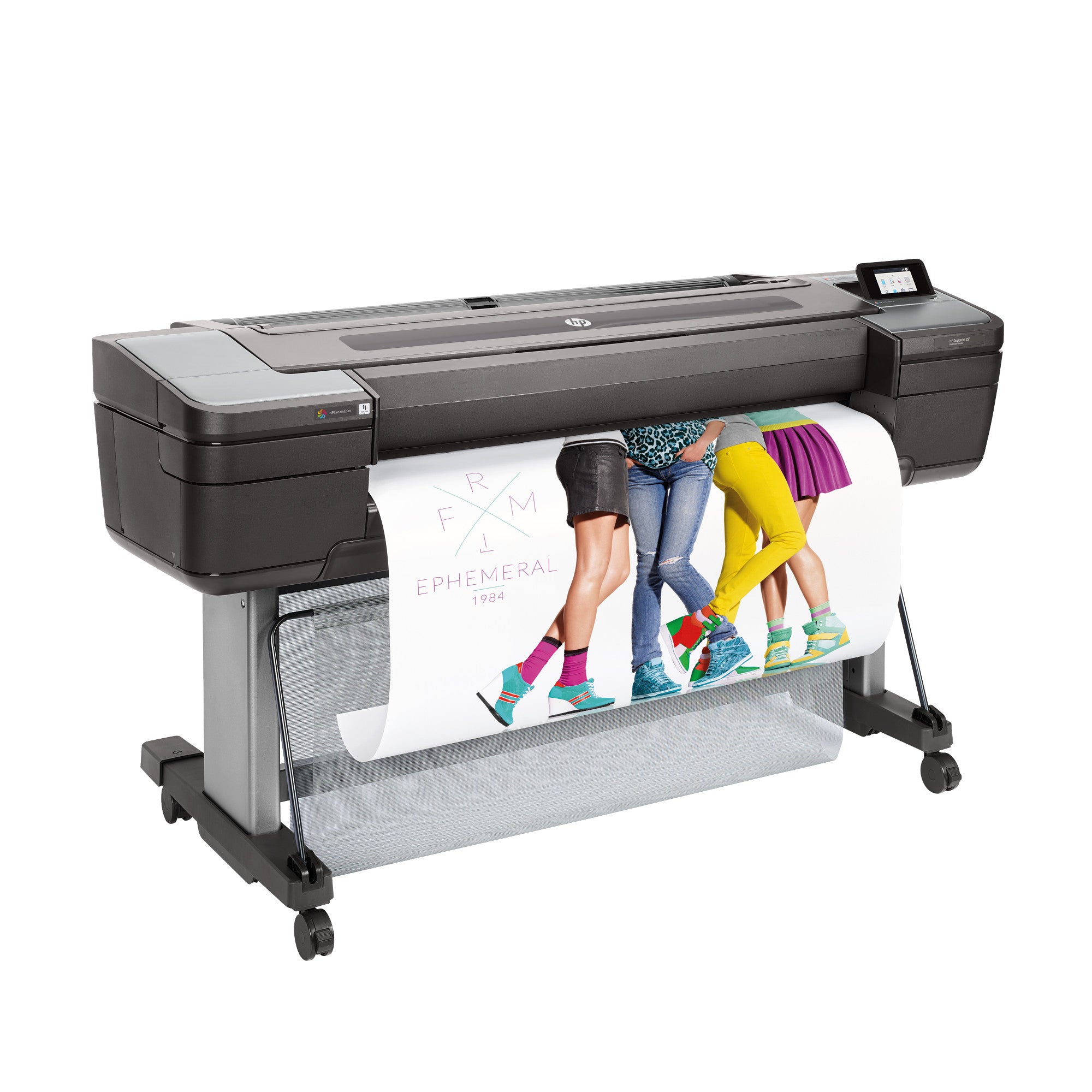

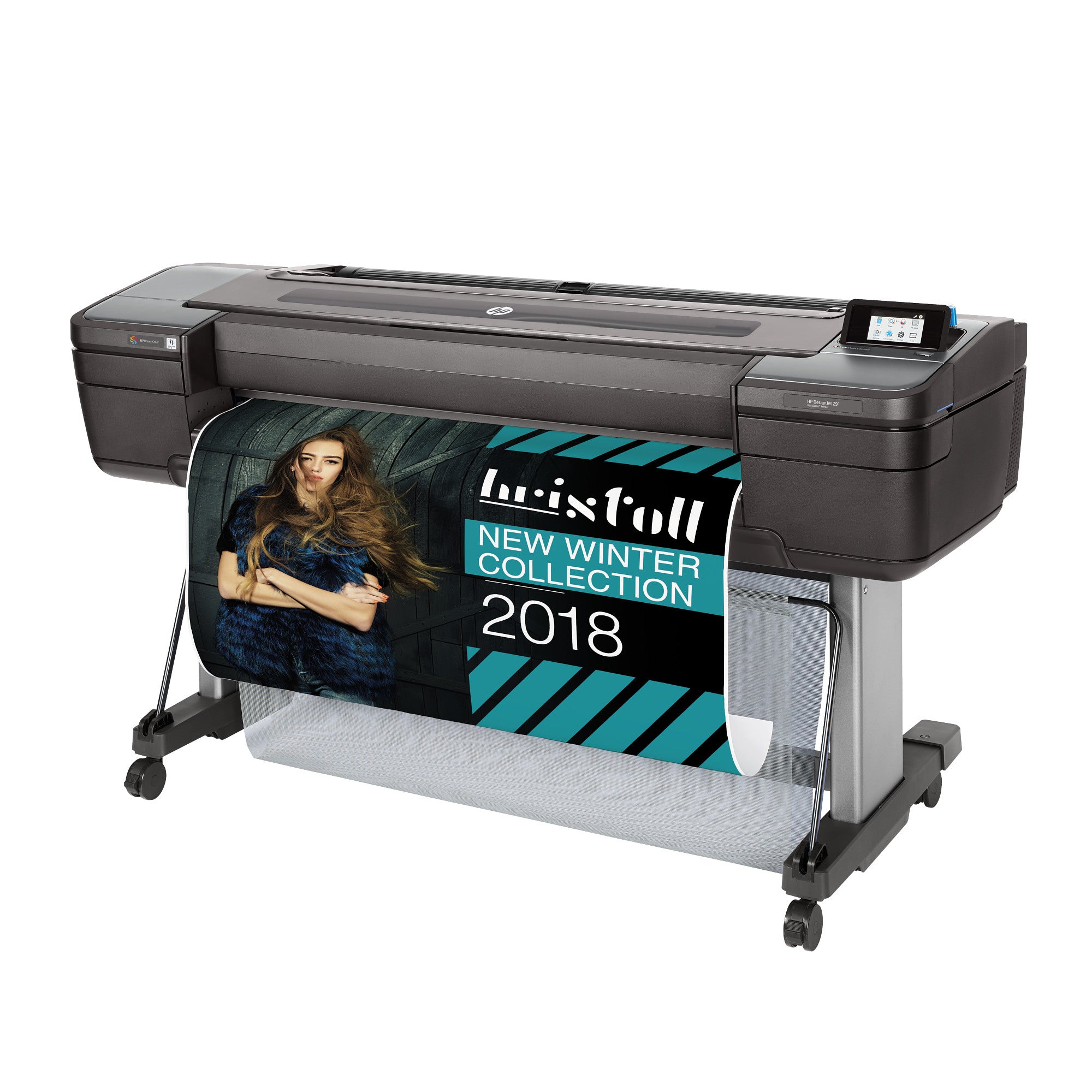

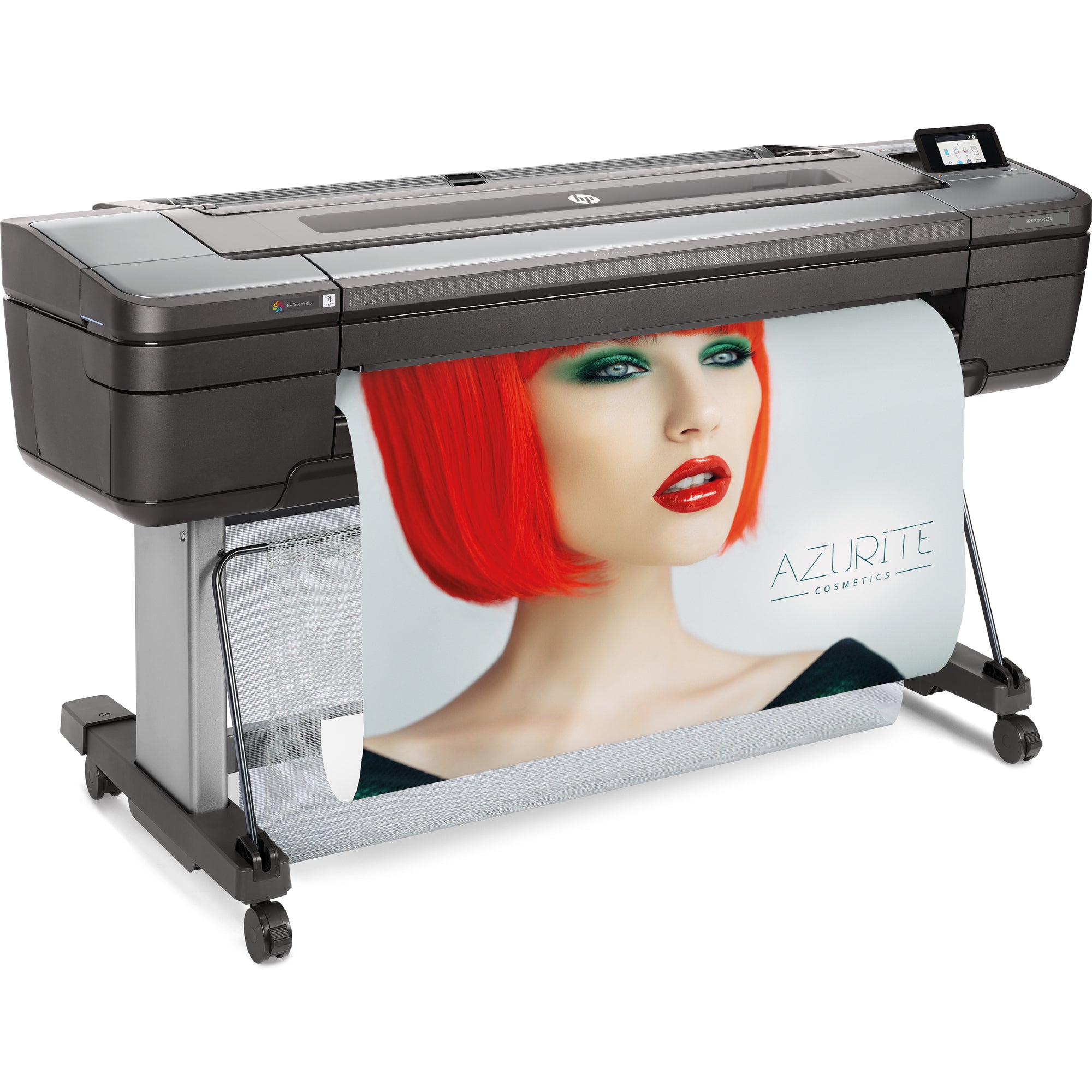

HP DesignJet Z9+ 44-in PostScript Printer (W3Z72F#B1K)
- Regular price
- 7,978.99$
- Sale price
- 7,978.99$
- Regular price
-
Free shipping
Couldn't load pickup availability
This item works with these cartridges :
HP DesignJet Z9+ 44-in PostScript Printer
Brand:HP
Product name:HP DesignJet Z9+ 44-in PostScript Printer
Product code:W3Z72F
EAN/UPC:
0193905205851
Description
Deliver photo-quality prints 2.5 times faster[4] without losing quality. Cut post-processing time up to 20% with the first printer to include an integrated vertical trimmer.[3] Simplify your workflow with new tools in the HP Applications Center.[5]
Reasons to buy
Produce professional photo-quality prints with smooth transitions using HP Pixel Control—no need for light inks with new high-definition HP printheads. Achieve expanded gamut with RGB HP Vivid Photo Inks. Upgrade to get superior gloss uniformity.[2]
Impress the most demanding customers with smooth transitions and sharp details thanks to HP Pixel Control.
No need for light inks using new high-definition HP printheads with dual drop technology.
Achieve expanded gamut with RGB HP Vivid Photo Inks and the embedded spectrophotometer.[1]
Get superior gloss uniformity by upgrading your printer to include HP Gloss Enhancer.[2]
Print 2.5 times faster[4] without losing quality with 2400 nozzle-per-inch high-definition printheads. Cut post-processing labor time up to 20% with the first printer to include an integrated vertical trimmer.[3] Save time with dual roll support.[3]
Cut post-processing labor time up to 20% with the first printer to include an integrated vertical trimmer.[3]
Print up to 2.5 times faster[4] without losing quality, with 2400 nozzle-per-inch high-definition printheads.
Spend less time on media changes and adjustments with dual roll support and automatic roll switching.[3]
Simplify your workflow. Easily design applications from posters to banners and canvas with the HP Applications Center.[5] Use your current RIPs.[6] Get remote visibility and control to better manage your print production environment with HP PrintOS.
Easily design applications from posters to banners and canvas with the HP Applications Center.[5]
No disruption to your workflow, keep using your current RIPs, validated with HP RIP certification program.[6]
Get remote visibility and control to better manage your print production environment with HP PrintOS.
Enjoy one-click printing that also helps reduce media waste using HP Click printing software.[7]
Specs
PSG_Accessories_Headsets[TS]
What's in the box
HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord
Manufacturer Warranty
90-day limited hardware warranty
Box contents
What's in the box
HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord
Care Pack Registration Flag
Registration required
No
Category
Primary applications
Advertising posters, roll-ups, and banners; Photo and art; Design and illustrations; Indoor signage; Décor
Product type
Professional Photo-quality Printers
Sub brand
DesignJet
Subcategory
Large format
Certification and Compliance
Electromagnetic compatibility
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
Energy star certified
Yes
Environmental certification
ENERGY STAR; ErP; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT
Safety
USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS)
Sustainability Impact
ENERGY STAR®; EPEAT®
Sustainability specifications
30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; ENERGY STAR® certified; EPEAT® registered
Compatibility
Accessories
CN538A HP DesignJet 3-in Core Adapter;G6H51B HP HD Pro 42-in Scanner;G6H50B HP SD Pro 44-in Scanner;N7P47AA HP USB 3.0 to Gigabit LAN Adapter;Q6709A HP DesignJet 44-in Spindle;1QF38A HP DesignJet 44-in Take-up Reel;2QX55A HP Gloss Enhancer Upgrade Kit
Core Features
Product type
Professional Photo-quality Printers
Dimensions
Package dimensions (W x D x H)
76.8 x 30.2 x 28.3 in
Package dimensions (W x D x H)
1950 x 766 x 718 mm
Dimensions (W x D x H)
71 x 27.4 x 39.3 in
Dimensions (W x D x H)
1802 x 695 x 998 mm
Geographic
Country of origin
Malaysia(B1K)
Media Handling
Media size maximum (mm)
1118
Media size maximum (in)
44
Monthly printed pages
Very frequently
Memory
Memory
128 GB (virtual)[9]
Metadata
Taxonomy
Large Format Printers/ Plotters
Segment
Business
Print Area
Non-printable area (cut-sheet)
5 x 17 x 5 x 5 mm
Non-printable area (cut-sheet)
0.2 x 0.67 x 0.2 x 0.2 in
Non-printable area (roll media)
5 x 5 x 5 x 5 mm (borderless on selected media[3])
Non-printable area (roll media)
0.2 x 0.2 x 0.2 x 0.2 in (borderless on selected media[3])
Print Resolution
Maximum optical density (black)
4 L* min/2.5 D[8]
Print quality color (best)
Up to 2400 x 1200 optimized dpi
Printer Specifications
Functions
Print
Functions
Print
Color accuracy
Median < 1.6 dE2000, 95% of colors < 2.8 dE2000[7]
Color Stability
< 1 dE2000 in less than 5 minutes[8]
Internal Storage
500 GB self-encrypting
Line accuracy
±0.1%[5]
Model size
1118 mm
Guaranteed minimum line width
0.0031 in (ISO/IEC 13660:2001(E))[6]
Guaranteed minimum line width
0.08 mm (ISO/IEC 13660:2001(E))[6]
Model size
44 in
Printer drivers included
Raster and PostScript drivers for Windows and macOS; PDF driver for Windows 8 and above
Features
Adobe PostScript; Hard disk; Automatic horizontal cutter; Vertical cutter; Stand; USB
Print languages
Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
Printing path
Apple AirPrint, direct printing from USB flash drive, email printing, HP Click, HP driver for macOS, HP driver for Windows, HP driver for Linux, printing support for Chrome OS, HP Print Service Plugin for Android, HP Smart app for iOS and Android, HP SmartStream
Print repeatability
Average < 0.5 dE2000, 95% of colors < 1.4 dE2000[8]
Print technology
HP Thermal Inkjet
Theoretical minimum line width
0.0008 in (PDF addressable @ 1200 dpi)
Theoretical minimum line width
0.02 mm (PDF addressable @ 1200 dpi)
Product Number Description
Product description
HP DesignJet Z9+ 44-in PostScript Printer
Product Numbers
Product number
W3Z72F
UNSPSC code
43212104
Supported Printing Media
Media sizes, custom
210 x 279 to 1118 x 1676 mm
Media sizes, custom
8.3 x 11 to 44 x 66 in
Media sizes supported
A4, A3, A2, A1, A0
Media thickness maximum (metric)
Up to 0.8 mm
Media types
Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit
Media weight, recommended
80 to 500 g/m²
Media width, maximum
1118 mm
Sustainability
Production CO2e (kg)
745
Transportation CO2e (kg)
51
Energy Usage CO2e (kg)
5
End of Life CO2e (kg)
126
Total CO2e (kg)
927
Total CO2e (kg) note
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Environmental certification
ENERGY STAR; ErP; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT
Energy star certified
Yes
Sustainability specifications
30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; ENERGY STAR® certified; EPEAT® registered
Country of origin
Malaysia(B1K)
Barcodes
UPC number
(ABA) 194441079951; (B1K) 193905205851
Battery and Power
Power consumption
<100 W (printing); <32 W (ready); <6.5 W (sleep); 0.1 W (off)
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
Cartridges and Printheads
Cartridge volume
300 ml
Color ink technology
Pigment
Ink drop
7/3 pl dual-drop weight (M, C, PK, CB, G); 6 pl single-drop weight (Y, CR, MK, CG)
Ink types
Pigment-based
Number of cartridges
9
Print Cartridge/Bottle, Color(s)
Cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray
Print Cartridges/Bottle, Number
9 (cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray), optional gloss enhancer
Print cartridge/bottle volume
HP 746 Ink Cartridge: cyan, magenta, chromatic red, yellow, matte black, photo black (300 ml); HP 747 Ink Cartridge: chromatic green, chromatic blue, gray (300 ml)
Print head nozzles
2112 per color; 21,120 in total
Print heads
5 universal printheads (valid for all colors)
Print Technology
Ink
Connectivity and Communications
Connectivity, standard
Gigabit Ethernet (1000Base-T) (802.3, 802.3u, 802.3ab); Hi-Speed USB 2.0 certified interface for direct printing from USB flash drive
Mobile printing capability
Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android.
Network ready
Standard
Security features
HP Secure Boot, Whitelisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypted HDD, PIN printing
Environmental
Acoustic power emissions (active, printing)
6.0 B(A) (operating), 5.1 B(A) (idle), <3.4 B(A) (sleep)
Acoustic pressure emissions
42 dB(A) (operating), 33 dB(A) (idle), <16 dB(A) (sleep)
Energy Usage CO2e (kg)
5
End of Life CO2e (kg)
126
Operating humidity range
20 to 80% RH
Operating temperature range
5 to 40ºC
Operating temperature range
41 to 104ºF
Production CO2e (kg)
745
Storage temperature range
-25 to 55ºC
Storage temperature range
-13 to 131ºF
Total CO2e (kg)
927
Total CO2e (kg) note
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Transportation CO2e (kg)
51
Print Speed
Print speed
Fast: 71.4 m²/hr on plain media; Normal: 17.2 m²/hr on coated media; Best: 4.5 m²/hr on glossy media[1]
Print speed
Fast: 769 ft²/hr on plain media; Normal: 185 ft²/hr on coated media; Best: 48 ft²/hr on glossy media[1]
Printing Media
Maximum roll diameter
5.3 in
Media sizes standard (metric rolls)
210 to 1118-mm wide sheets; 279 to 1118-mm rolls
Media sizes standard (sheets, rolls)
8.3 to 44-in wide sheets; 11 to 44-in rolls
Media thickness
Up to 31.5 mil
Media width, maximum
44 in
Recommended media
HP Universal Instant-dry Satin Photo Paper (FSC® certified)[11] (Recyclable)[12]; HP Premium Instant‑dry Satin Photo Paper (REACH compliant)[13](FSC® certified)[11](Recyclable)[12]; HP Artist Matte Canvas; HP Heavyweight Coated Paper (FSC® certified)[11] (Recyclable)[12]; HP Coated Paper (REACH compliant)[13](FSC® certified)[11](Recyclable)[12];HP Everyday Matte Polypropylene (Recyclable)[9]; HP Premium Matte Photo Paper (FSC® certified)[11] (Recyclable)[12]
Roll external diameter
5.3 in
Roll external diameter
135 mm
Roll maximum input
1
Roll maximum weight
29.8 lb
Roll maximum weight
13.5 kg
Roll size
Up to 44 in
Supported Primary Applications
Digital fine art; Exhibition and event graphics; Graphics design; Photos; Point of sale/display; Posters
Printing Media Handling
Finished output handling
Roll feed, rear sheet feed, media output bin, automatic horizontal cutter
Product Images
Photo (product photo, jpg, 70x100)
Printing and Digital Imaging/c7791e_70x100.jpg
Product Names
Code name
Jaguar 9
Product long name
HP DesignJet Z9+ 44-in PostScript Printer
Product name
HP DesignJet Z9+ 44-in PostScript Printer
Short product name
Z9+
Software and Applications
Software included
HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional)
Special Products
Contractual flag
GSB
Product classification flag
Standard HP Product
System Internal
Tangible flag
Y
Warranty
Manufacturer Warranty
90-day limited hardware warranty
Weights
Package weight
286 lb
Package weight
130 kg
Weight
207 lb
Weight
94 kg
Logistics
UPC number
(ABA) 194441079951; (B1K) 193905205851
What's in the box
HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord
Package dimensions (W x D x H)
1950 x 766 x 718 mm
Dimensions (W x D x H)
1802 x 695 x 998 mm
Country of origin
Malaysia(B1K)
Material Type for item
FERT
Product number
W3Z72F
UNSPSC code
43212104
Package weight
130 kg
Weight
94 kg
