EPSON PowerLite L690SU Short throw projector 6200 ANSI lumens 3LCD WUXGA (1920x1200) White (V11HB31020)
- Regular price
- 7,061.95$
- Sale price
- 7,061.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

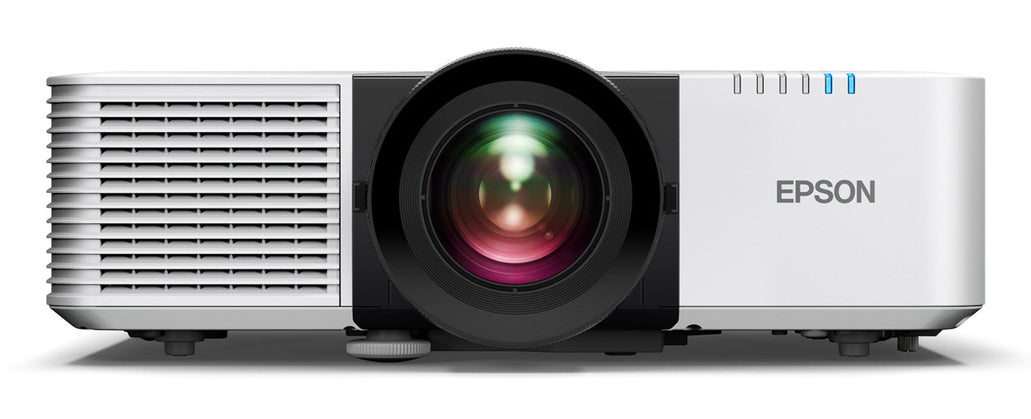

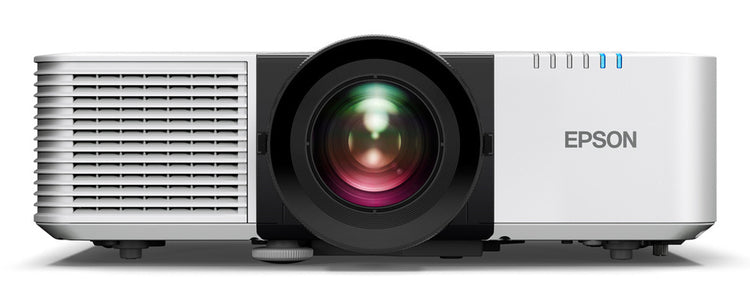

Epson PowerLite L690SU Short throw projector 6200 ANSI lumens 3LCD WUXGA (1920x1200) White
Brand:Epson
Product name:L690SU
Product code:V11HB31020
EAN/UPC:
0010343988996
0010343988996, 010343988996
- 6,200 lumens color/white brightness
- WUXGA for clear, detailed images
- 0.79 – 1.36 throw, 1.7x zoom, up to 400" display
- Lightweight, compact design allows for easy installation
- 30,000-hr laser light source & filter
Description
This incredibly compact projector delivers larger-than-life images with a short 0.79 – 1.36 throw ratio.
Experience the extraordinary versatility and performance of our bright and compact PowerLite® L-Series. Expanding on the possibilities of this powerful projector lineup, the PowerLite L690SU features an expansive 0.79 – 1.36 throw ratio and a large display up to 400''. With wide vertical and horizontal lens shifts and 1.7x optical zoom, the projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more. Deliver bright images in rooms with high-ambient light with 6,200 lumens of equal color and white brightness1 and Full HD WUXGA resolution.

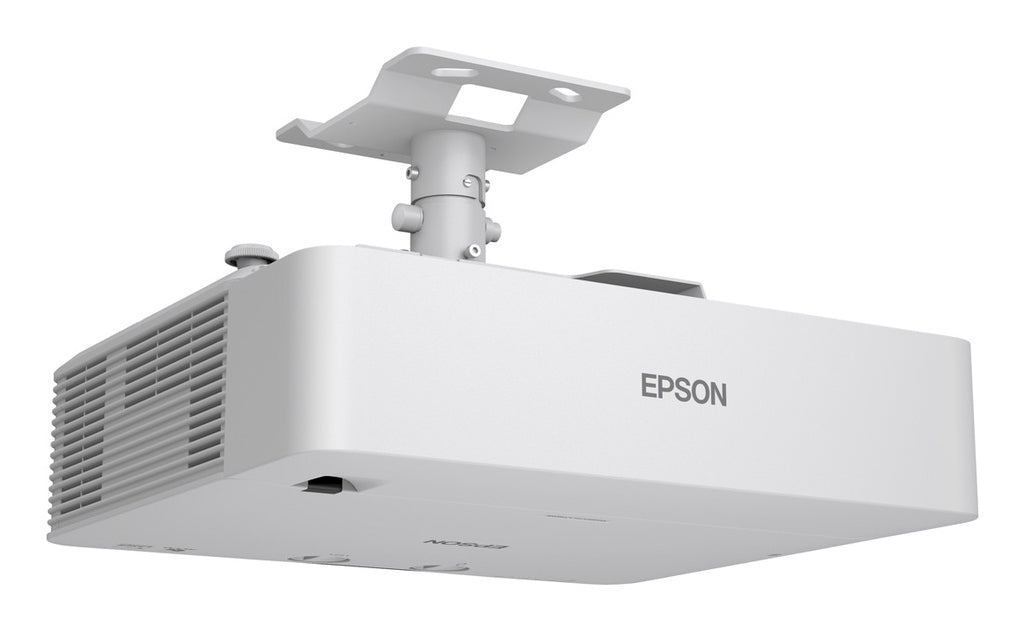

Simple to install, the PowerLite L690SU is easy to operate from start to finish. Built-in NFC functionality2, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source and air filter3 in Extended Mode. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection™4, Apple® AirPlay®5 and Miracast®4. In addition, simplify complex multi-projector applications with the optional attachable PixAlign™ camera.
Epson’s PowerLite L-Series offers a range of solutions to meet virtually any application. This lineup also features additional short throw options, including the PowerLite L690SE, designed for an even shorter 0.5 – 0.7 throw ratio.
Experience the extraordinary versatility and performance of our bright and compact PowerLite® L-Series. Expanding on the possibilities of this powerful projector lineup, the PowerLite L690SU features an expansive 0.79 – 1.36 throw ratio and a large display up to 400''. With wide vertical and horizontal lens shifts and 1.7x optical zoom, the projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more. Deliver bright images in rooms with high-ambient light with 6,200 lumens of equal color and white brightness1 and Full HD WUXGA resolution.
Simple to install, the PowerLite L690SU is easy to operate from start to finish. Built-in NFC functionality2, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source and air filter3 in Extended Mode. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection™4, Apple® AirPlay®5 and Miracast®4. In addition, simplify complex multi-projector applications with the optional attachable PixAlign™ camera.
Epson’s PowerLite L-Series offers a range of solutions to meet virtually any application. This lineup also features additional short throw options, including the PowerLite L690SE, designed for an even shorter 0.5 – 0.7 throw ratio.
Video
Specs
Projector
Supported aspect ratios
The aspect ratio is the ratio of the width of an image to its height. The supported aspect ratios are the aspect ratios that can be shown by the device.
16:10, 16:6, 21:9
Screen size compatibility
The different screen sizes which the device can work with.
1524 - 10160 mm (60 - 400")
Projection distance
The maximum length at which an image can be projected.
1.02 - 11.89 m
Projection distance (wide)
1 - 7 m
Projection distance (tele)
1.8 - 11.9 m
Projector brightness
6200 ANSI lumens
Projection technology
3LCD
Projector native resolution
WUXGA (1920x1200)
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
5000000:1
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:10
Number of colours
1.07 billion colours
Projector brightness (economic mode)
4340 ANSI lumens
Keystone correction, horizontal
-30 - 30°
Keystone correction, vertical
-30 - 30°
Light source
Light source type
Laser
Service life of light source
20000 h
Service life of light source (economic mode)
30000 h
Lens system
Focus
Manual
Focal length range
Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).
11.6 - 19.9 mm
Aperture range (F-F)
Aperture range of the device's optics, expressed in f-stops.
1.7 - 2.1
Zoom capability
The amount that the camera lens can zoom.
Zoom type
Manual
Zoom ratio
Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example.
1.2:1
Throw ratio
0.79 - 1.36:1
Horizontal lens shift range
-20 - 20%
Vertical lens shift range
-50 - 50%
Video
Analog signal format system
The supported protocols for exchanging analog signals.
Not supported
Full HD
Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
3D
The device can be used with 3D technology.
Video colour modes
Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

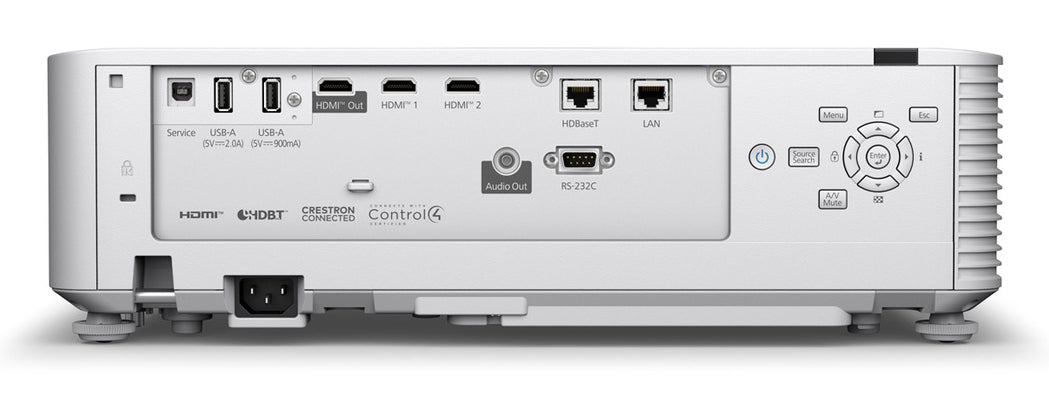

Ports & interfaces
HDBaseT port
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
3
USB 2.0 Type-A ports quantity
2
USB 2.0 Type-B ports quantity
1
Serial interface type
RS-232C
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
DVI port
Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100 Mbit/s
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast
Apple AirPlay 2 support
Storage
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Features
Interactive
Noise level (economic mode)
25 dB
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Preset modes
Cinema, Dynamic, Presentation
On Screen Display (OSD)
HDCP version
2.3
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
34 dB
Password protection
The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Multimedia
Built-in speaker(s)
The device contains speaker(s) to produce sound.
RMS rated power
RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.
10 W
Design
Market positioning
Under which category can the device be positioned in the market, e.g. camera phone.
Education
Product type
The sub-category of the product.
Short throw projector
Product colour
The colour e.g. red, blue, green, black, white.
White
Placement
Where the product can be placed e.g. floor, wall.
Ceiling, Desktop
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
Display
Built-in display
A display which is part of the product, so you do not need to attach another display.
Display
The description of display that can includes display type, resolution, size etc.
LCD
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
1.7 cm (0.67")
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
336 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0.4 W
Power consumption (max)
The maximum amount of power used by the device.
399 W
Power consumption (economy mode)
233 W
AC input frequency
50/60 Hz
AC adapter output voltage
100 - 240 V
Operational conditions
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
The measurement or extent of something from side to side.
440 mm
Depth
The distance from the front to the back of something.
362 mm
Height
The measurement of the product from head to foot or from base to top.
151 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
8.9 kg
Packaging content
Remote control included
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Batteries included
Cables included
Power
Technical details
Warranty period
3 year(s)
Other features
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
HTTPS, SNMP, ESC/VP.net, PJLink
RS-232C
