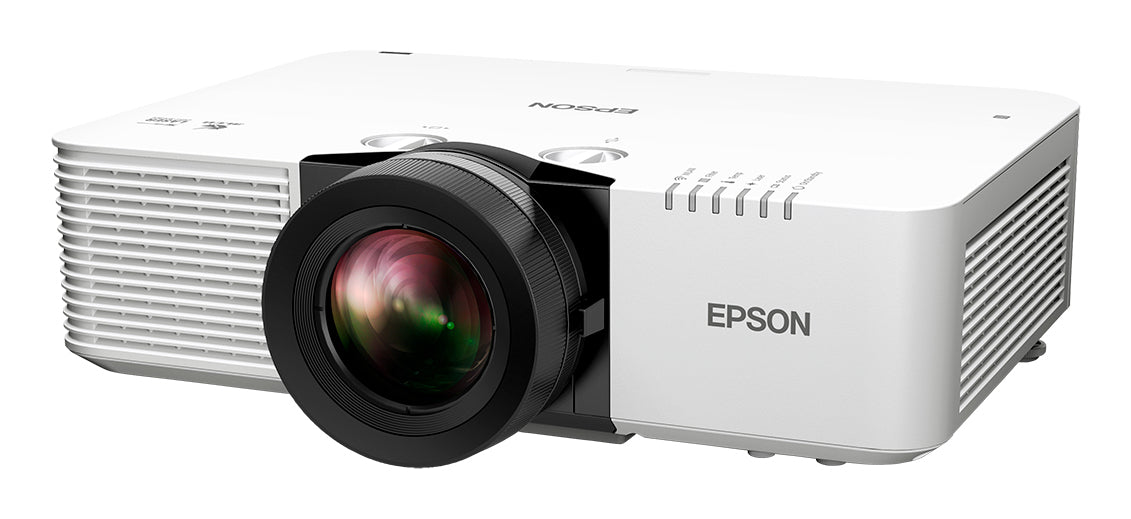

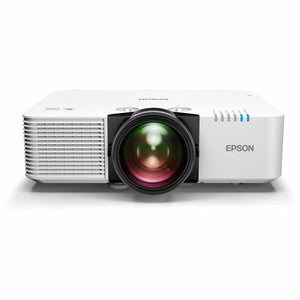

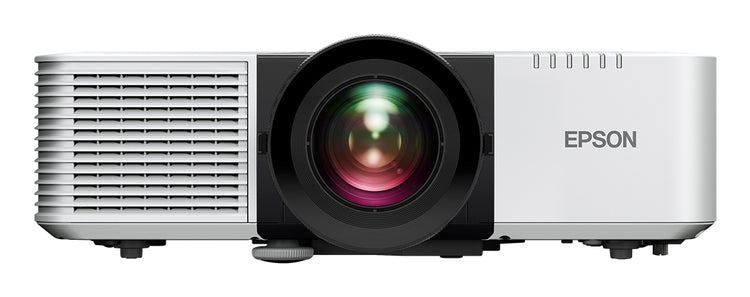

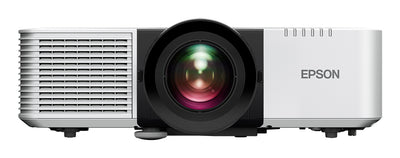

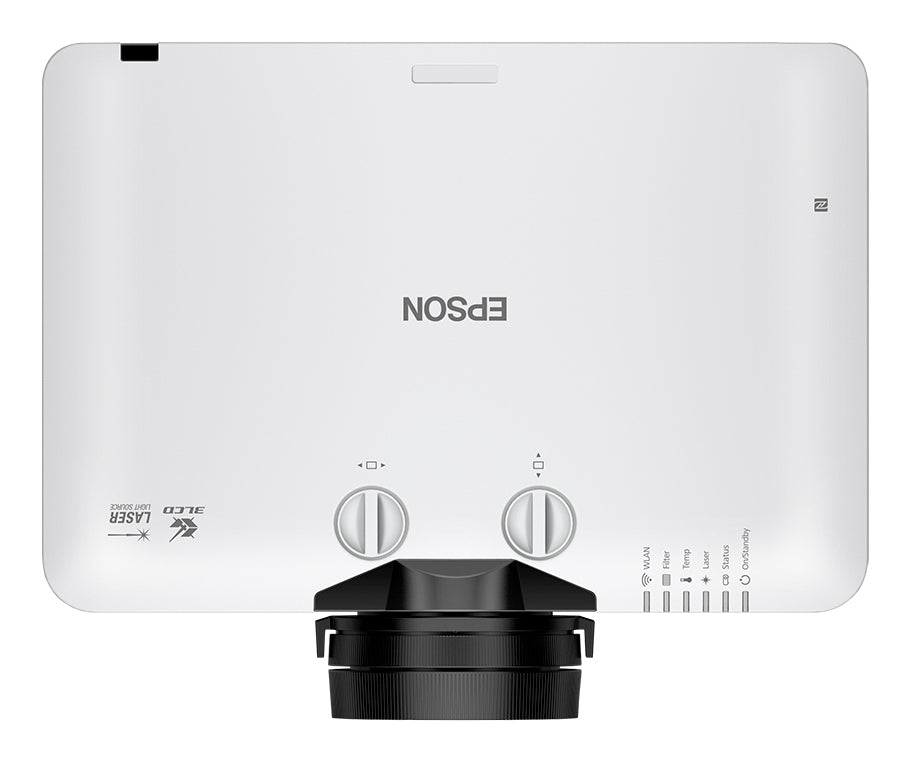

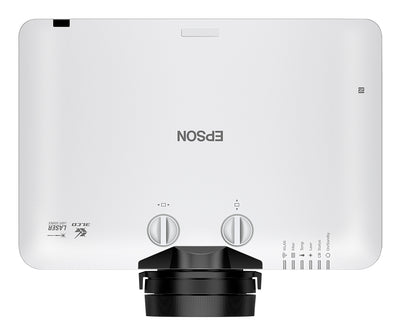

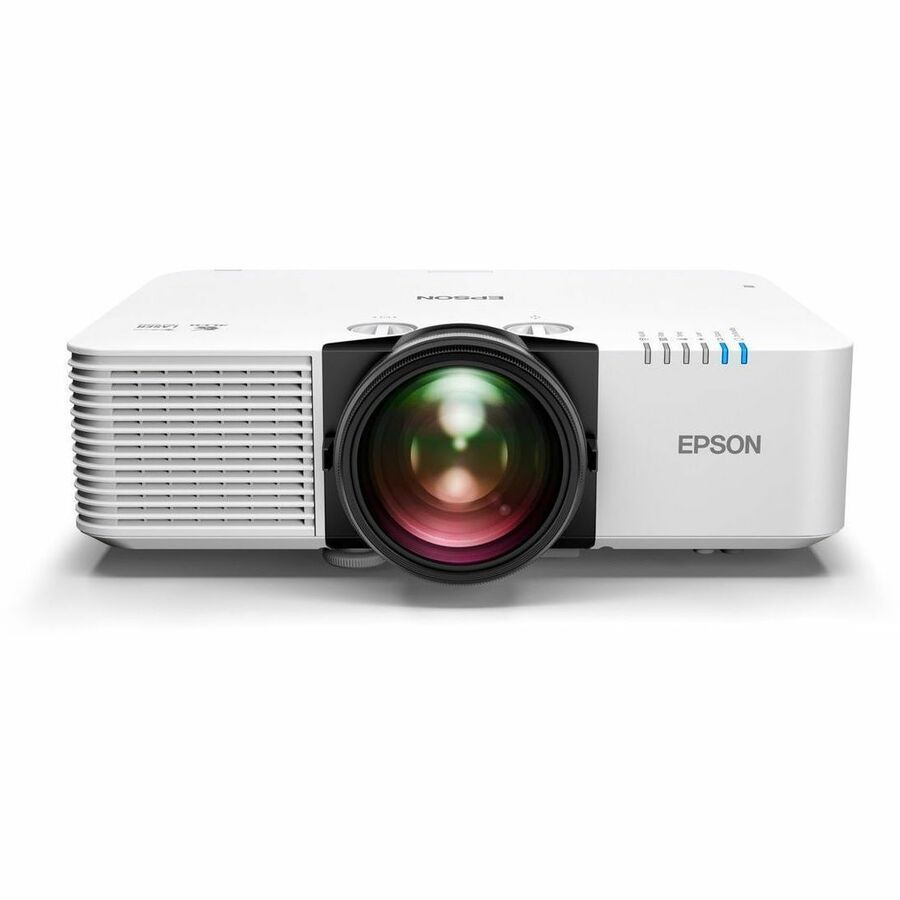

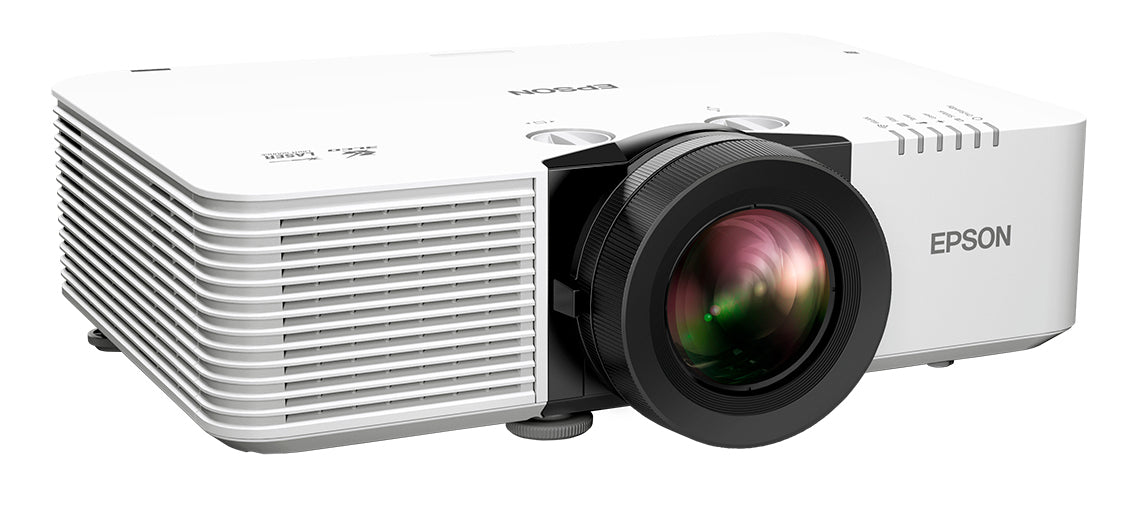

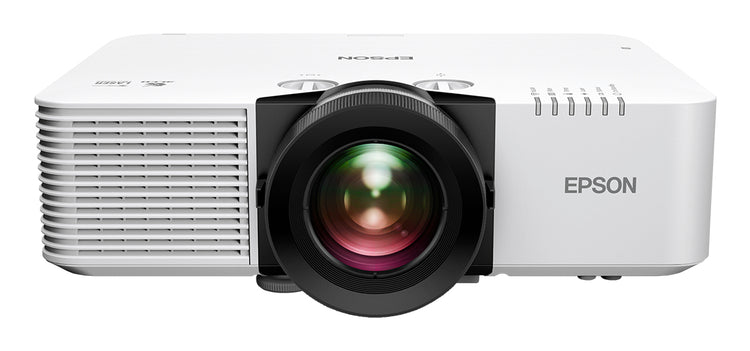

EPSON L690SE Short throw projector 6000 ANSI lumens WUXGA (1920x1200) White (V11HB36020)
- Regular price
- 8,650.95$
- Sale price
- 8,650.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
Epson L690SE Short throw projector 6000 ANSI lumens WUXGA (1920x1200) White
Brand:Epson
Product name:L690SE
Product code:V11HB36020
EAN/UPC:
0010343988989
0010343988989, 010343988989
- 6000 lumens colour/white brightness1
- WUXGA with 4K Enhancement2 for clear, detailed images
- 0.5 – 0.7 throw ratio and 1.4x optical zoom
- Display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9
- Lightweight, compact design allows for easy installation
Description
This incredibly compact projector delivers larger-than-life images with a short 0.5 – 0.7 throw ratio.
Experience the extraordinary versatility and performance of our bright and compact PowerLite® L-Series. Expanding on the possibilities of this powerful projector lineup, the PowerLite L695SE features a short 0.5 – 0.7 throw ratio and a large display up to 500". With wide vertical and horizontal lens shifts and 1.4x optical zoom, this flexible projector is ideal for a variety of applications, such as floor and rear projection, golf simulation, museum exhibitions and more. Deliver vivid images in rooms with high-ambient light with 6,000 lumens of equal colour and white brightness1. Plus, enjoy a sharp, detailed picture thanks to 4K Enhancement Technology2 that displays double HD resolution on-screen.
Simple to install, the PowerLite L695SE is easy to operate from start to finish. Built-in NFC functionality3, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features a sleek, black case and an up to 30,000-hour virtually maintenance-free laser light source and air filter4 in Extended Mode. In addition, simplify complex multi-projector applications with the optional attachable PixAlign™ camera.
Epson’s PowerLite L-Series offers a range of solutions to meet virtually any application. This lineup also features ultra bright short throw options, including the PowerLite L795SE, which provides a wider 0.8 – 1.36 throw ratio.
Experience the extraordinary versatility and performance of our bright and compact PowerLite® L-Series. Expanding on the possibilities of this powerful projector lineup, the PowerLite L695SE features a short 0.5 – 0.7 throw ratio and a large display up to 500". With wide vertical and horizontal lens shifts and 1.4x optical zoom, this flexible projector is ideal for a variety of applications, such as floor and rear projection, golf simulation, museum exhibitions and more. Deliver vivid images in rooms with high-ambient light with 6,000 lumens of equal colour and white brightness1. Plus, enjoy a sharp, detailed picture thanks to 4K Enhancement Technology2 that displays double HD resolution on-screen.
Simple to install, the PowerLite L695SE is easy to operate from start to finish. Built-in NFC functionality3, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features a sleek, black case and an up to 30,000-hour virtually maintenance-free laser light source and air filter4 in Extended Mode. In addition, simplify complex multi-projector applications with the optional attachable PixAlign™ camera.
Epson’s PowerLite L-Series offers a range of solutions to meet virtually any application. This lineup also features ultra bright short throw options, including the PowerLite L795SE, which provides a wider 0.8 – 1.36 throw ratio.
Specs
Projector
Supported aspect ratios
The aspect ratio is the ratio of the width of an image to its height. The supported aspect ratios are the aspect ratios that can be shown by the device.
4:3, 16:10, 16:9, 16:6, 21:9
Screen size compatibility
The different screen sizes which the device can work with.
2540 - 12700 mm (100 - 500")
Projection distance
The maximum length at which an image can be projected.
1,09 - 7,84 m
Projection distance (wide)
1,1 - 5,6 m
Projection distance (tele)
1,5 - 7,8 m
Projector brightness
6000 ANSI lumens
Projector native resolution
WUXGA (1920x1200)
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
5000000:1
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:10
Number of colors
1.07 billion colours
Keystone correction, horizontal
-30 - 30°
Keystone correction, vertical
-30 - 30°
Matrix size
1,7 cm (0.67")
Ports & interfaces
HDBaseT port
USB 2.0 Type-A ports quantity
1
USB 2.0 Type-B ports quantity
1
Serial interface type
RS-232C
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
DVI port
Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
Storage
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Design
Market positioning
Under which category can the device be positioned in the market, e.g. camera phone.
Education
Product type
The sub-category of the product.
Short throw projector
Product color
The colour e.g. red, blue, green, black, white.
White
Placement
Where the product can be placed e.g. floor, wall.
Ceiling, Desktop
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
Operational conditions
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
The measurement or extent of something from side to side.
440 mm
Depth
The distance from the front to the back of something.
368 mm
Height
The measurement of the product from head to foot or from base to top.
151 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
9,3 kg
Light source
Light source type
Laser
Service life of light source
20000 h
Service life of light source (economic mode)
30000 h
Lens system
Focus
Manual
Focal length range
Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).
7.54 - 10.55 mm
Aperture range (F-F)
Aperture range of the device's optics, expressed in f-stops.
1,8 - 2
Zoom capability
The amount that the camera lens can zoom.
Zoom type
Manual
Throw ratio
0.50 - 1.70:1
Horizontal lens shift range
-20 - 20%
Vertical lens shift range
-50 - 50%
Video
Analog signal format system
The supported protocols for exchanging analog signals.
Not supported
Full HD
Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
3D
The device can be used with 3D technology.
Video color modes
Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Miracast
Features
Interactive
Noise level (economic mode)
26 dB
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Preset modes
Cinema, Dynamic, Presentation
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
36 dB
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
432 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0,3 W
AC input frequency
50/60 Hz
AC adapter output voltage
100 - 240 V
Packaging content
Handheld remote control
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Batteries included
Technical details
Warranty period
3 year(s)
