EPSON PowerLite 685W Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White (V11H744520)
- Regular price
- 2,236.95$
- Sale price
- 2,236.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
Epson PowerLite 685W Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White
Brand:Epson
Product name:685W
Product code:V11H744520
EAN/UPC:
0010343924642
0010343924642, 010343924642
Description
The ultimate ultra short-throw presentation display for BYOD classrooms.
Take classroom collaboration to another level with the PowerLite 685W widescreen ultra short-throw presentation display. Designed for today’s BYOD classroom, this WXGA performer displays 100" images from just 11" away for optimal visibility. Offering 3x Higher Color Brightness than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. Delivering 3,500 lumens of color and white brightness, the 685W ensures stimulating presentations. It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks — up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.
Take classroom collaboration to another level with the PowerLite 685W widescreen ultra short-throw presentation display. Designed for today’s BYOD classroom, this WXGA performer displays 100" images from just 11" away for optimal visibility. Offering 3x Higher Color Brightness than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. Delivering 3,500 lumens of color and white brightness, the 685W ensures stimulating presentations. It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks — up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.
Specs
Projector
Screen size compatibility
The different screen sizes which the device can work with.
1524 - 2540 mm (60 - 100")
Projection distance
The maximum length at which an image can be projected.
0.34 - 0.6 m
Contrast ratio (dynamic)
A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.
14000:1
Projector brightness
3500 ANSI lumens
Projection technology
3LCD
Projector native resolution
WXGA (1280x800)
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:10
Number of colours
1.073 billion colours
Keystone correction, horizontal
-3 - 3°
Keystone correction, vertical
-3 - 3°
Matrix type
3-panel (p-Si TFT active)
White light output
3500 ANSI lumens
Colour light output
3500 ANSI lumens
Light source
Light source type
Lamp
Service life of light source
5000 h
Service life of light source (economic mode)
10000 h
Lamp type
The characteristics of the lamp.
UHE
Lamp power
250 W
Lens system
Focus
Manual
Fixed focal length
3.7 mm
F-number (relative aperture)
1.6
Zoom capability
The amount that the camera lens can zoom.
Zoom ratio
Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example.
1.35:1
Digital zoom
Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.
1.35x
Throw ratio
0.28 - 0.37:1
Video
Analog signal format system
The supported protocols for exchanging analog signals.
NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HD
Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.

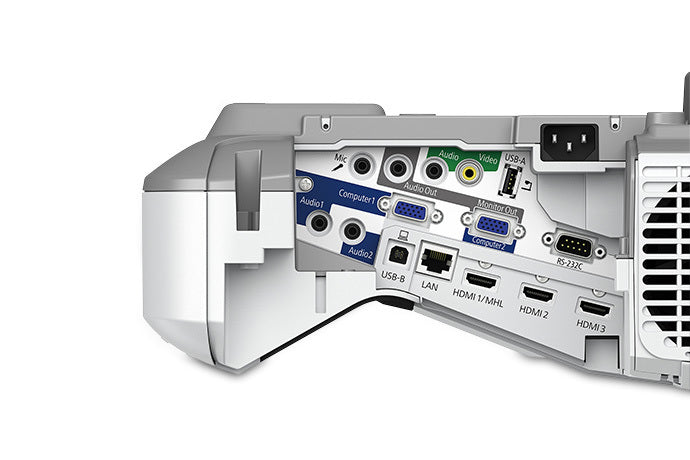

Ports & interfaces
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
2
Audio (L/R) in
The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).
3
Audio (L/R) out
The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).
1
Microphone in
The socket where a microphone is connected to the device.
Serial interface type
RS-232C
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
2
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
3
DVI port
Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
Mobile High-Definition Link (MHL)
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Features
Noise level (economic mode)
29 dB
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
35 dB
Password protection
The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Multimedia
Built-in speaker(s)
The device contains speaker(s) to produce sound.
RMS rated power
RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.
16 W
Number of built-in speakers
1
Design
Market positioning
Under which category can the device be positioned in the market, e.g. camera phone.
Education
Product type
The sub-category of the product.
Ultra short throw projector
Product colour
The colour e.g. red, blue, green, black, white.
Grey, White
Placement
Where the product can be placed e.g. floor, wall.
Ceiling, Desktop, Wall
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
373 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
2.2 W
Power consumption (economy mode)
324 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
5 - 40 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
368 mm
Depth
The distance from the front to the back of something.
401 mm
Height
The measurement of the product from head to foot or from base to top.
188 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
5.71 kg
Packaging content
Remote control included
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Batteries included
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Manual
Technical details
Compliance certificates
RoHS
Other features
RS-232 ports
The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.
1
RS-232C
