EPSON PowerLite 5520W Standard throw projector 5500 ANSI lumens 3LCD WXGA (1280x800) White (V11H826020)
- Regular price
- 3,290.95$
- Sale price
- 3,290.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

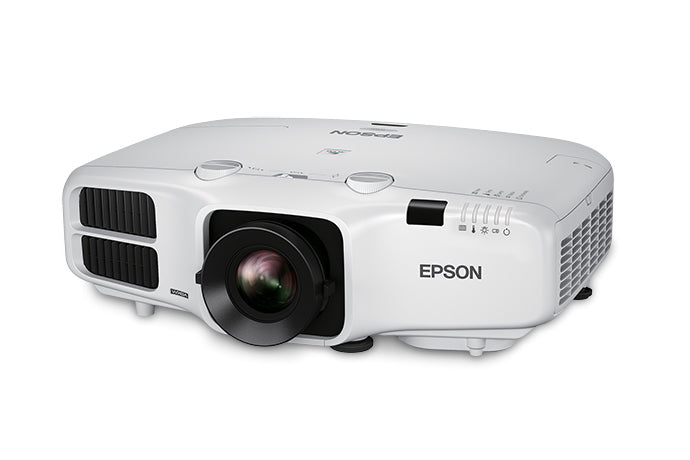

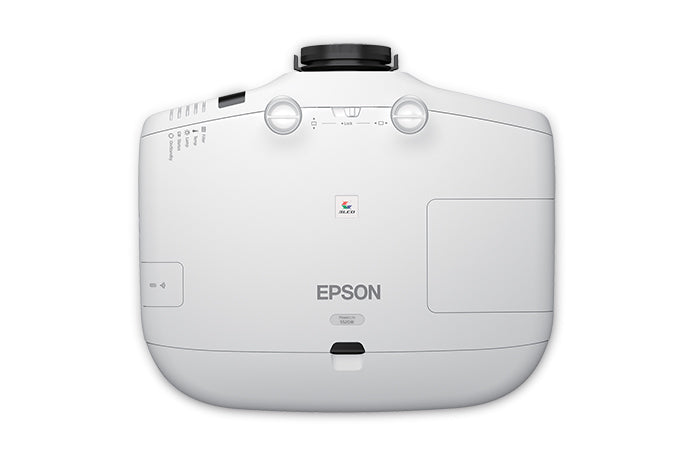

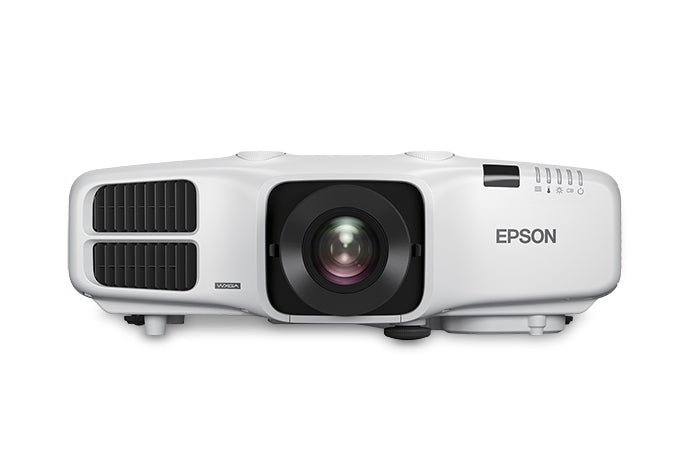

Epson PowerLite 5520W Standard throw projector 5500 ANSI lumens 3LCD WXGA (1280x800) White
Brand:Epson
Product name:5520W
Product code:V11H826020
EAN/UPC:
0010343932616
0010343932616, 010343932616
Description
Widescreen large-venue projector with lens shift and robust connectivity.
Designed for large venues, the PowerLite 5520W widescreen installation projector delivers uncompromising image quality and professional-grade reliability. Offering 3x Higher Color Brightness than competitive models, Epson® 3LCD projectors ensure bright, vivid images. Featuring 5,500 lumens of color brightness and 5,500 lumens of white brightness1, plus WXGA resolution with up to 15,000:1 contrast ratio, the PowerLite 5520W shines, even in environments with high ambient light. Horizontal and vertical lens shift increases installation flexibility, while advanced digital connectivity, including HDBaseT™, ensures easy integration. Miracast® allows presenters to wirelessly mirror Android™ device screens. The projector also supports enterprise-level wireless security and remote network monitoring/control.
3x Brighter Colors with Epson
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 5500 lumens of color brightness1 and 5500 lumens of white brightness1, the PowerLite 5520W uses 3LCD, 3-chip technology for brilliant images with true-to-life color.
Designed for large venues, the PowerLite 5520W widescreen installation projector delivers uncompromising image quality and professional-grade reliability. Offering 3x Higher Color Brightness than competitive models, Epson® 3LCD projectors ensure bright, vivid images. Featuring 5,500 lumens of color brightness and 5,500 lumens of white brightness1, plus WXGA resolution with up to 15,000:1 contrast ratio, the PowerLite 5520W shines, even in environments with high ambient light. Horizontal and vertical lens shift increases installation flexibility, while advanced digital connectivity, including HDBaseT™, ensures easy integration. Miracast® allows presenters to wirelessly mirror Android™ device screens. The projector also supports enterprise-level wireless security and remote network monitoring/control.
3x Brighter Colors with Epson
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 5500 lumens of color brightness1 and 5500 lumens of white brightness1, the PowerLite 5520W uses 3LCD, 3-chip technology for brilliant images with true-to-life color.
Specs
Projector
Supported aspect ratios
The aspect ratio is the ratio of the width of an image to its height. The supported aspect ratios are the aspect ratios that can be shown by the device.
4:3, 16:10, 16:9
Screen size compatibility
The different screen sizes which the device can work with.
762 - 7620 mm (30 - 300")
Contrast ratio (dynamic)
A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.
15000:1
Projector brightness
5500 ANSI lumens
Projection technology
3LCD
Projector native resolution
WXGA (1280x800)
Uniformity
Defines in percentage the harmonious spread of the projection
87%
Keystone correction, horizontal
-30 - 30°
Keystone correction, vertical
-30 - 30°
Matrix type
3-panel (p-Si TFT active)
White light output
5500 ANSI lumens
Colour light output
5500 ANSI lumens
Light source
Light source type
Lamp
Service life of light source
5000 h
Service life of light source (economic mode)
10000 h
Lamp type
The characteristics of the lamp.
UHE
Lamp power
300 W
Lens system
Focus
Manual
Focal length range
Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).
21.34 - 37.99 mm
Aperture range (F-F)
Aperture range of the device's optics, expressed in f-stops.
1.5 - 2.15
Zoom capability
The amount that the camera lens can zoom.
Zoom ratio
Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example.
2.0:1
Optical zoom
Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera.
2x
Throw ratio
1.26 - 2.30:1
Horizontal lens shift range
-10 - 10°
Vertical lens shift range
-50 - 50°
Video
Analog signal format system
The supported protocols for exchanging analog signals.
NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HD
Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.

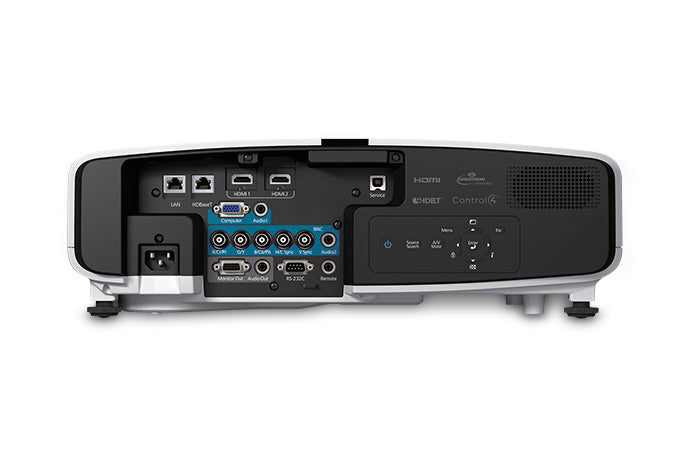

Ports & interfaces
HDBaseT port
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
2
Audio (L/R) in
The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).
2
Audio (L/R) out
The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).
1
Serial interface type
RS-232C
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
2
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
BNC input ports
Ports (sockets) to connect BNC inputs. The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable.
1
DVI port
Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
Mobile High-Definition Link (MHL)
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
100 Mbit/s
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Features
Noise level (economic mode)
28 dB
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
38 dB
Design
Market positioning
Under which category can the device be positioned in the market, e.g. camera phone.
Presentation
Product type
The sub-category of the product.
Standard throw projector
Product colour
The colour e.g. red, blue, green, black, white.
White
Placement
Where the product can be placed e.g. floor, wall.
Desktop, Ceiling
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
462 W
Power consumption (PowerSave)
324 W
Power consumption (economy mode)
324 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 45 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
470 mm
Depth
The distance from the front to the back of something.
320 mm
Height
The measurement of the product from head to foot or from base to top.
132 mm
Packaging content
Remote control included
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Other features
RS-232 ports
The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.
1
RS-232C
