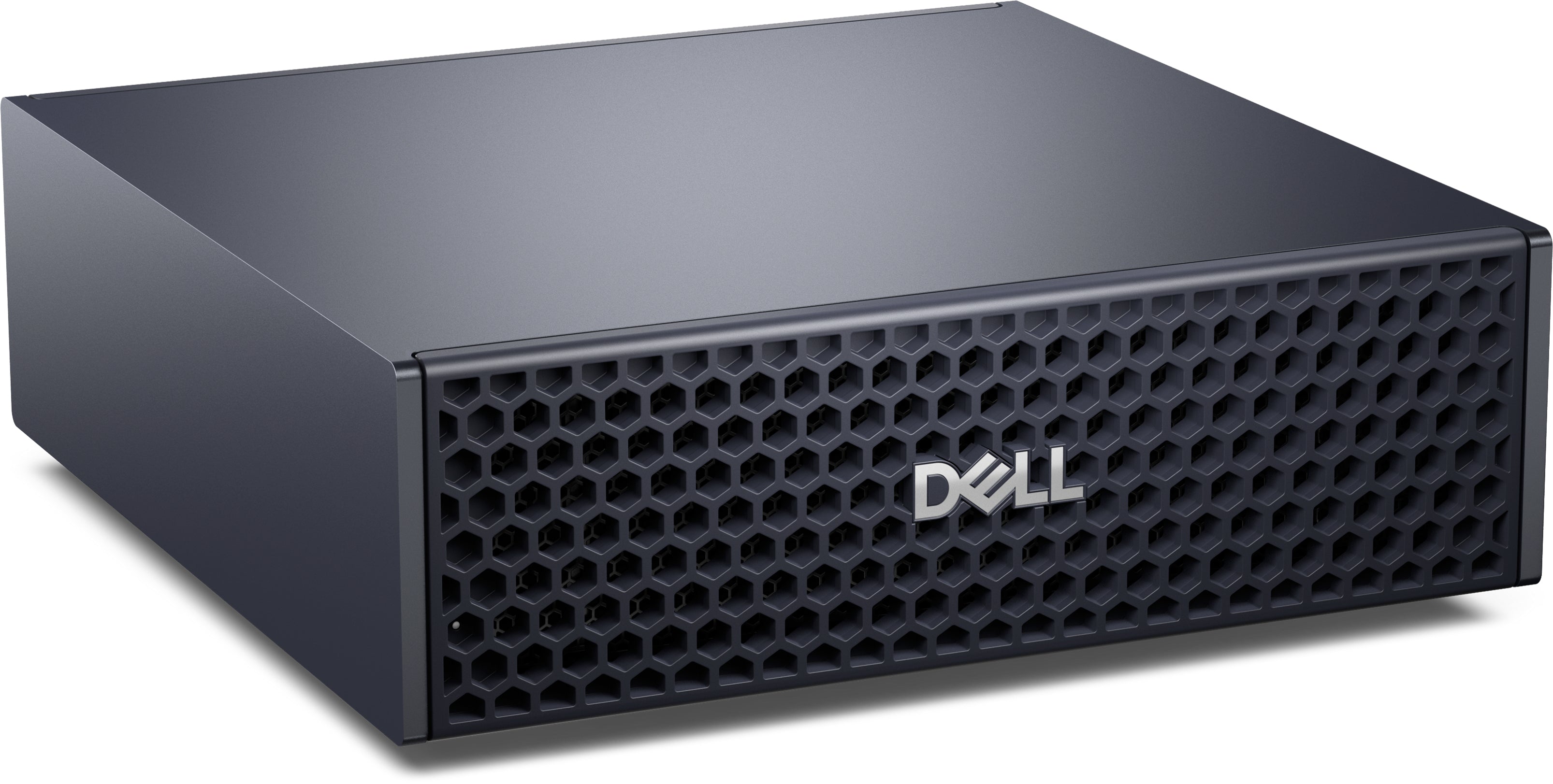

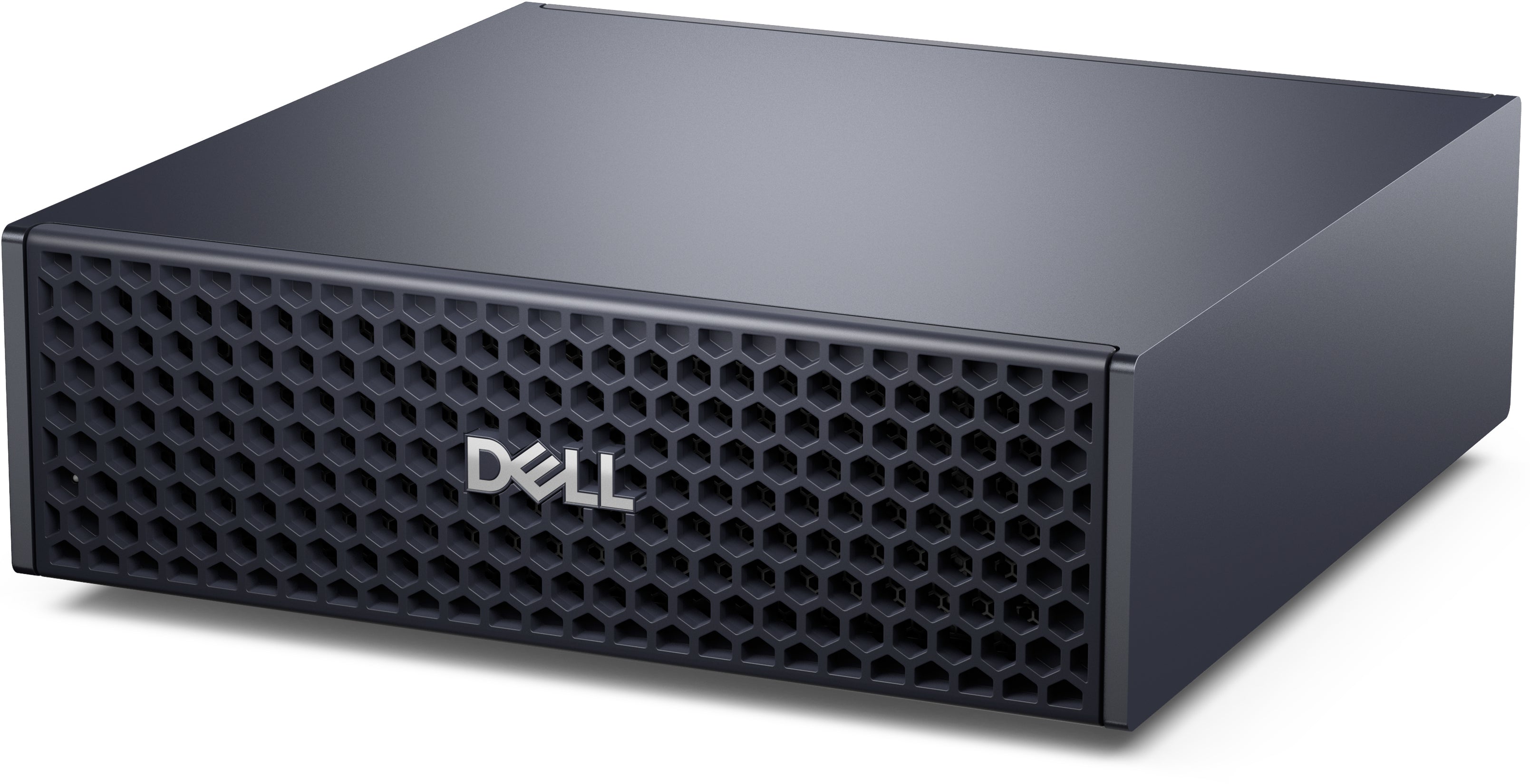

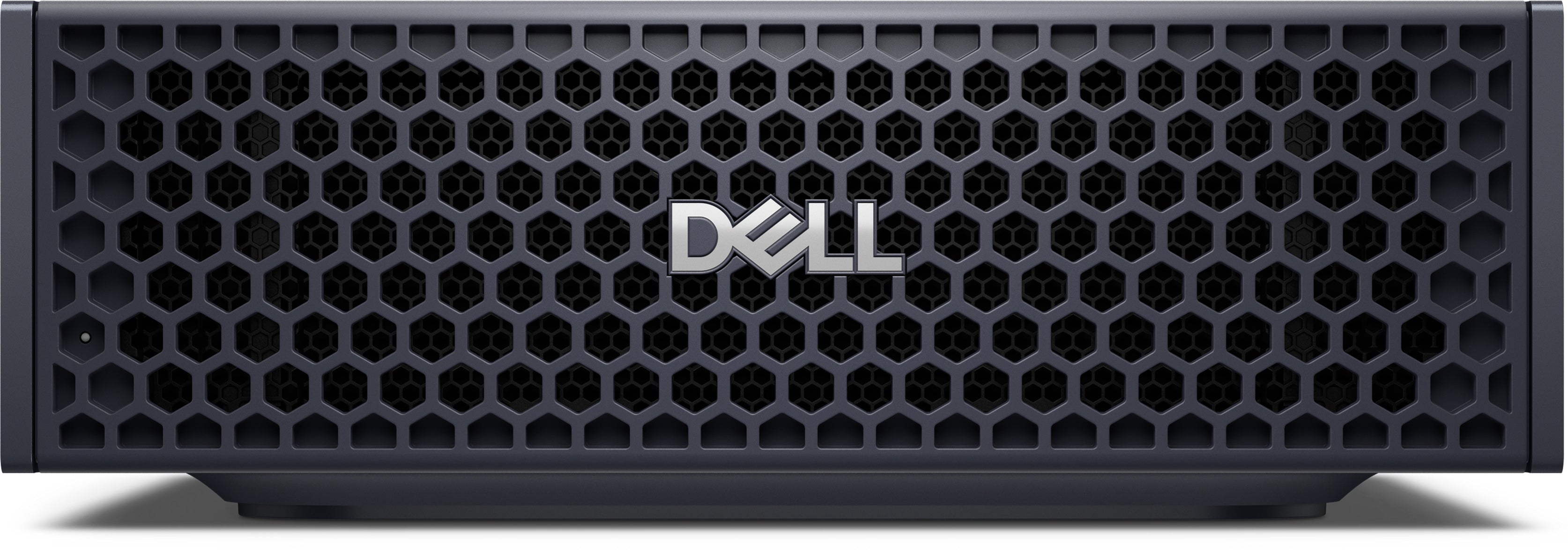

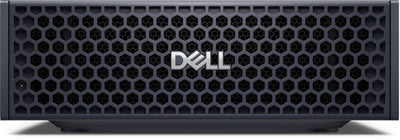

DELL Pro Max FCM1253 GB10 128 GB LPDDR5x-SDRAM 2 TB SSD DGX OS Mini PC Black (GNFF4)
- Regular price
- 8,208.95$
- Sale price
- 8,208.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
DELL Pro Max FCM1253 GB10 128 GB LPDDR5x-SDRAM 2 TB SSD DGX OS Mini PC Black
Brand:DELL
Product name:FCM1253 GB10
Product code:GNFF4
EAN/UPC:
0884116672630
0884116672630, 884116672630
- DGX OS
- GB10 (16MB Cache)
- 128GB LPDDR5x-SDRAM & 2000GB SSD
Description
Compact design for optimized AI workloads
Dell Pro Max with GB10 an AI Accelerator provides compact design with powerful performance for local AI inferencing, AI development, and versatile Edge use cases.
Dell Pro Max with GB10 an AI Accelerator provides compact design with powerful performance for local AI inferencing, AI development, and versatile Edge use cases.
Specs
Processor
Processor manufacturer
The manufacturer that produced the processor.
Nvidia
Processor model
The model number for the processor in a computer.
GB10
Processor cores
The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).
20
Processor cache
16 MB
Neural processor unit (NPU)
NPU performance up to
13 TOPs
Memory
Internal memory
A computer's memory which is directly accessible to the CPU.
128 GB
Maximum internal memory
The maximum internal memory which is available in the product.
128 GB
Internal memory type
The type of internal memory such as RAM, GDDR5.
LPDDR5x-SDRAM
Memory data transfer rate
8533 MT/s
Storage
Total storage capacity
The total amount of data that can be stored on the device.
2 TB
Storage media
Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).
SSD
Optical drive type
An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
No
Number of storage drives installed
Amount of storage drives built into the device.
1
Total SSDs capacity
2 TB
Number of SSDs installed
1
SSD capacity
The Solid State Drive's data storage capacity.
2 TB
SSD interface
The type of interface(s) with which the Solid State Drive is connected to other hardware.
PCI Express 4.0
NVMe
NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
SSD form factor
The size of the solid-state drive, given in inches
M.2
Graphics
Discrete graphics card
On-board graphics card
Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model
A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.
Not available
On-board GPU manufacturer
NVIDIA
On-board graphics card model
"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.
NVIDIA Blackwell
Performance
Trusted Platform Module (TPM)
Product type
The sub-category of the product.
Mini PC
Trusted Platform Module (TPM) version
2.0
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000,10000 Mbit/s
LAN controller
NVIDIA ConnectX-7
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 7 (802.11be)
Wi-Fi standards
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller manufacturer
AzureWare
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

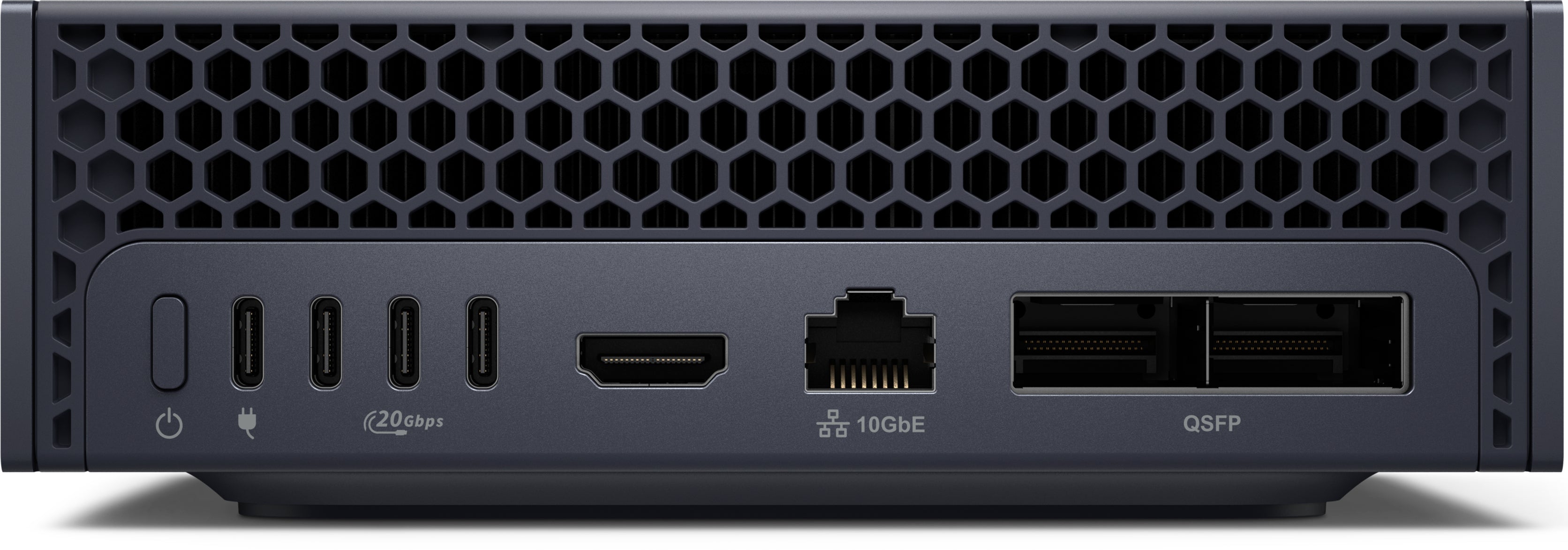

Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity
3
USB Type-C DisplayPort Alternate Mode
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
HDMI version
2.1a
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Power
Power supply
The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
280 W
Power supply input voltage
100 - 240 V
Design
Volume
The amount of a substance contained.
6 L
Product colour
The colour e.g. red, blue, green, black, white.
Black
Software
Operating system installed
Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
DGX OS
Display
Display included
This product includes a display.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 35 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating vibration
Environmental requirements for vibration in operating mode
0.66 G
Non-operating vibration
Environmental requirements for vibration in non-operating mode
1.3 G
Operating shock
Environmental requirements for optimal protection from impact in operating mode
110 G
Non-operating shock
Environmental requirements for optimal protection from impact in non-operating mode
160 G
Weight & dimensions
Width
The measurement or extent of something from side to side.
150 mm
Depth
The distance from the front to the back of something.
150 mm
Height
The measurement of the product from head to foot or from base to top.
51 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.34 kg
Sustainability
Doesn't contain
PVC/BFR
Carbon footprint
Total carbon footprint (kg of CO2e)
The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.
427
Total carbon emissions, standard deviation (kg of CO2e)
The total estimated standard deviation of carbon emission calculated over various lifecycle stages per unit i.e., measured in kilograms CO2e. Deviations can be caused due to the use of default, assumed values during calculations.
110
Carbon emissions, manufacturing (kg of CO2e)
The mean carbon emissions during the Manufacturing stage (i.e., emissions during raw material extraction and manufacturing of components (e.g., drives, graphics cards, memory, CPU, mainboards, etc.) or assembling of the product.
258.76
Carbon emissions, logistics (kg of CO2e)
The mean carbon emissions during the transportation of the product.
61.49
Carbon emissions, energy usage (kg of CO2e)
Use-phase carbon emissions from products that consume energy (fuels or electricity) during use.
99.06
Carbon emissions, end-of-life (kg of CO2e)
The mean carbon emissions related to the End-of-Life processing of products.
7.69
PAIA version
PAIA (Product Attribute to Impact Algorithm) tool for product carbon footprint calculations.
The version of the PAIA tool (and year if available) used during carbon footprint calculation for a product.
PAIA 1.5.1, 2025
