BENQ DVY23 Black 30 fps (5J.F7314.003)
- Regular price
- 1,615.95$
- Sale price
- 1,615.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

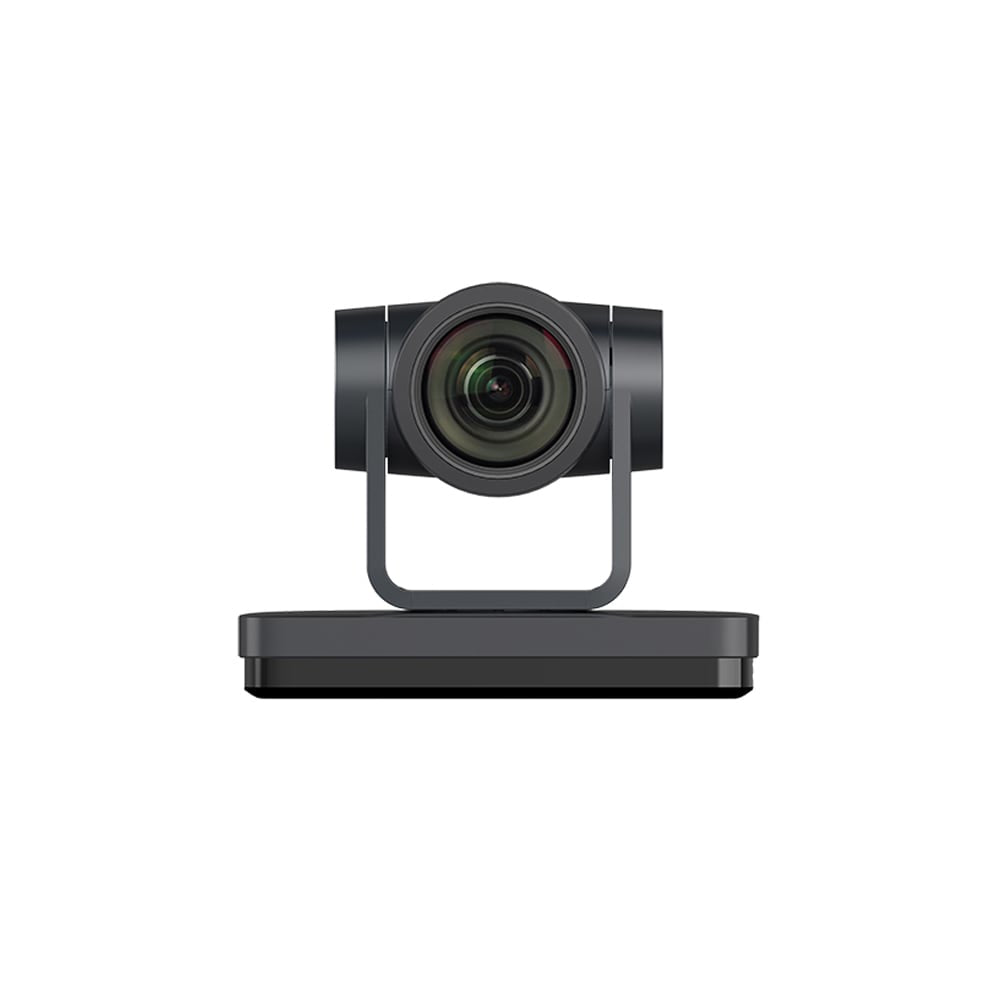

BenQ DVY23 Black 30 fps
Brand:BenQ
Product name:DVY23
Product code:5J.F7314.003
EAN/UPC:
4718755084478
4718755084478, 0840046044398, 840046044398
- Ultra-detailed 20x optical zoom
- Pan: ±170° / Tilt: -30° to +90°

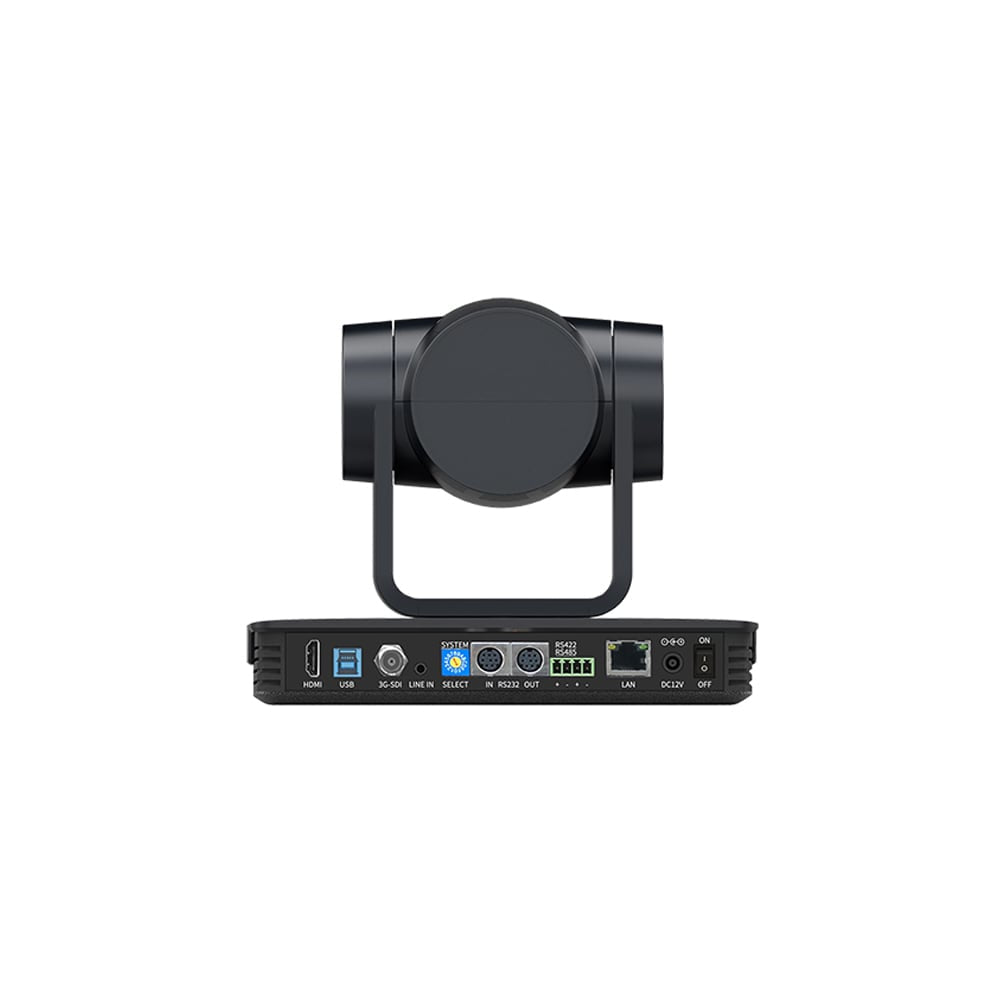

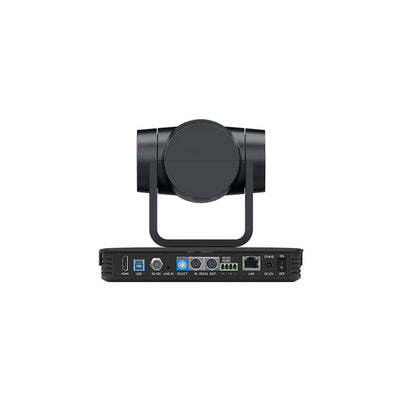

- Video outputs: USB 3.0, HDMI, 1GbE with PoE, 3G-SDI
- Streaming: RTSP and RTMP
- Control ports: RS232, RS422, RS485, LAN, and remote control
Description
Large Conference Room Solution
The DVY23 is a premium pan/tilt/zoom camera that offers ultra-clear video quality with 20x optical zoom and is ideal for large conferences held in large spaces. The 20x zoom is double the industry standard.
The DVY23 is a premium pan/tilt/zoom camera that offers ultra-clear video quality with 20x optical zoom and is ideal for large conferences held in large spaces. The 20x zoom is double the industry standard.
Specs
Camera
Camera type
There are a number of common types of digital cameras: compact cameras, bridge cameras, mirrorless interchangeable-lens cameras (MILC) and single lens reflex (SLR) cameras. Bridge cameras 'bridge the gap' between the low-end compact and high-end professional (SLR) cameras. Also MILCs populate this mid-segment by combining the larger sensors and interchangeable lenses of DSLRs with the live-preview viewing system of compact cameras.
Single camera
Zoom capability
The amount that the camera lens can zoom.
Optical zoom
Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera.
20x
Digital zoom
Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.
10x
Horizontal field of view
55°
Vertical field of view
31°
Minimum illumination
Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.
0,5 lx
Focus adjustment
Auto/Manual
PTZ control
Power
Operating voltage
Defines the range of operating voltages available
12 V
Packaging content
Power supply included
There is a power supply with this product.
Handheld remote control
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Cables included
USB
Mounting kit
Logistics data
Harmonized System (HS) code
85258900
Video
Maximum frame rate
This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).
30 fps
Supported video modes
The video modes that can be displayed by the device.
720p, 1080p
Design
Product color
The colour e.g. red, blue, green, black, white.
Black
Mounting type
Type of mounting e.g. wall mounting.
Clip
Tilt angle range
-30 - 90°
Pan range
-170 - 170°
Ports & interfaces
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
Power over Ethernet (PoE) ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 7, Windows 8.1
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.10 Yosemite
Performance
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Audio
Built-in microphone
Microphone that is found inside the product.
Weight & dimensions
Width
The measurement or extent of something from side to side.
181 mm
Depth
The distance from the front to the back of something.
116 mm
Height
The measurement of the product from head to foot or from base to top.
150 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1,38 kg
